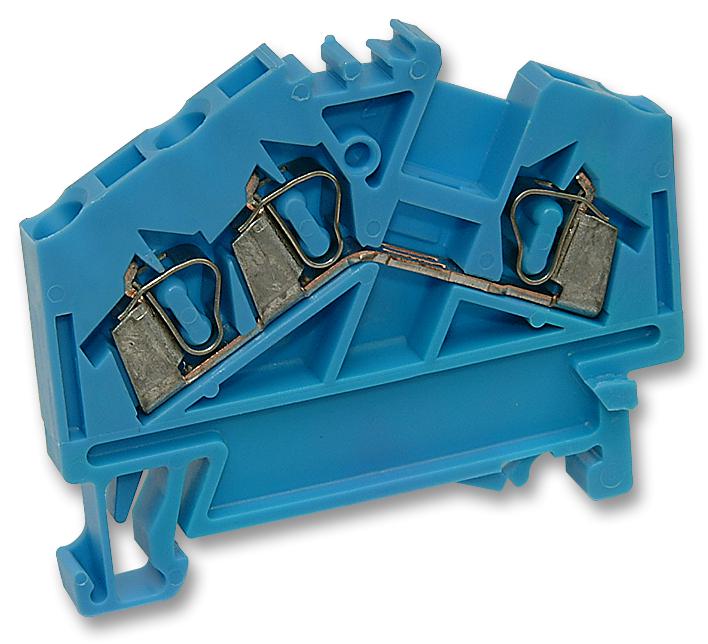

WAGO 280651 3-conductor terminal block
The WAGO 280-651 is a 3-conductor through terminal block ideal for applications requiring robust and reliable connections, particularly in potentially explosive environments (Ex i). It utilizes WAGO’s CAGE CLAMP® spring pressure connection technology, ensuring secure and easy termination of conductors. The block is designed for mounting on DIN-rails 35 x 15 and 35 x 7.5, and accepts solid and fine-stranded conductors within a range of 0.08 to 2.5 mm². The blue color and center marking aid in identification and organization within electrical panels. For aluminum conductors, the use of WAGO’s “Alu-Plus” contact paste is recommended to prevent oxidation and ensure optimal conductivity.
WAGO 280651 3-conductor terminal block Specifications:
- Number of conductors: 3
- Conductor size: 0.08 - 2.5 mm²
- Connection technology: CAGE CLAMP®
- Mounting rail: DIN-35 rail
- Rated voltage: 800 V
- Rated impulse voltage: 8 kV
- Rated current: 24 A
- Material: Polyamide 66 (PA 66)
- Color: blue
- Width: 5 mm
- Height from rail: 36.5 mm
- Depth: 50.5 mm
- Weight: 6.7 g
- Strip length: 8 - 9 mm
