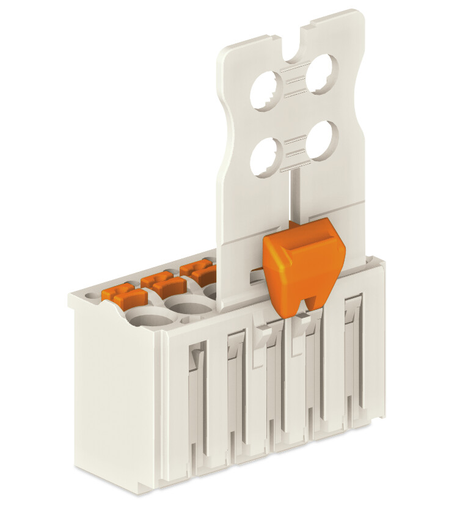

WAGO 20911106002000 6-pole Female Plug Connector
The WAGO 2091-1106/002-000 is a 6-pole female plug connector designed for universal conductor connections. Its push-in CAGE CLAMP® termination simplifies wiring, eliminating the need for special tools. The gripping plate and sliding connector release mechanism allows for easy disconnection while maintaining a secure connection. This connector is ideal for applications requiring frequent disconnection and reconnection, such as in control cabinets, automation systems, and power distribution panels. It's designed for reliable performance and ease of use, contributing to efficient and safe electrical installations.
WAGO 20911106002000 6-pole Female Plug Connector Specifications:
- Rated voltage (III / 3): 160 V
- Rated impulse voltage (III / 3): 2.5 kV
- Rated voltage (III / 2): 160 V
- Rated impulse voltage (III / 2): 2.5 kV
- Rated voltage (II / 2): 320 V
- Rated impulse voltage (II / 2): 2.5 kV
- Rated current: 10 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-button
- Solid conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
- Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 0.75 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 1.5 mm²
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 6
- Total number of connection points: 6
- Total number of potentials: 6
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 3.5 mm / 0.138 inch
- Width: 21 mm / 0.827 inch
- Height: 34 mm / 1.339 inch
- Depth: 12.4 mm / 0.488 inch
- Material group: I
- Insulating material: Polyphthalamide (PPA GF)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.071 MJ
- Weight: 2.9 g
- Limit temperature range: -60 … +100 °C
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4050821411666
- Customs Tariff No.: 85366990990
