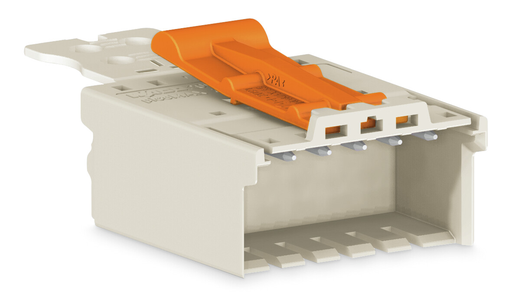

WAGO 20911506002000 6-pole Male Connector
The WAGO 2091-1506/002-000 is a 6-pole male connector within the picoMAX product family, engineered for versatile conductor connections in industrial settings. Its push-in CAGE CLAMP® technology enables simple, tool-free termination of solid and ferruled conductors. The design facilitates testing parallel to conductor entry, enhancing efficiency and safety. This connector is ideal for 'wire-to-wire' and 'board-to-wire' applications, offering a reliable and easy-to-use solution for electrical connections. It is designed without breaking capacity for compliance with DIN EN 61984.
WAGO 20911506002000 6-pole Male Connector Specifications:
- Rated voltage (III / 3): 160 V
- Rated impulse voltage (III / 3): 2.5 kV
- Rated voltage (III / 2): 160 V
- Rated impulse voltage (III / 2): 2.5 kV
- Rated voltage (II / 2): 320 V
- Rated impulse voltage (II / 2): 2.5 kV
- Rated current: 10 A
- Solid conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
- Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 0.75 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 1.5 mm²
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 6
- Total number of connection points: 6
- Total number of potentials: 6
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 3.5 mm / 0.138 inch
- Width: 23 mm / 0.906 inch
- Height: 15.9 mm / 0.626 inch
- Depth: 47 mm / 1.85 inch
- Material group: I
- Insulating material: Polyphthalamide (PPA GF)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.148 MJ
- Weight: 6.3 g
- Limit temperature range: -60 … +100 °C
- Product Group: 26 (picoMAX)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4050821161332
- Customs Tariff No.: 85366990990
