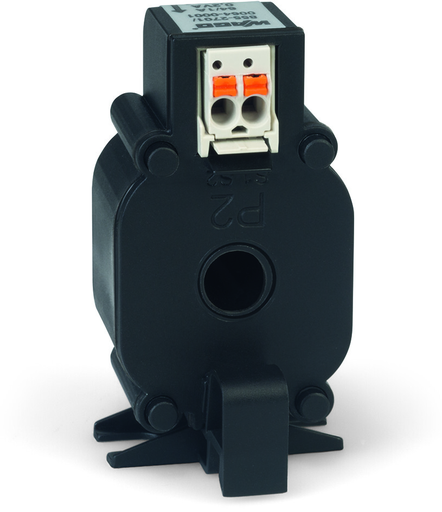

WAGO 8552701035001 Plug-in Current Transformer
The WAGO 855-2701/035-001 is a plug-in current transformer ideal for AC network applications. Its inductive, single-conductor design, combined with picoMAX connection technology, allows for space-efficient and easy assembly. This transformer converts current from 64 A or 35 A to 1 A, offering accuracy class 1. It's suitable for a variety of industrial applications requiring precise current measurement and control, such as motor control, power monitoring, and protection systems. The unit can be easily mounted on DIN rails or panels via a DIN-rail adapter, providing flexibility in system design.
WAGO 8552701035001 Plug-in Current Transformer Specifications:
- Primary rated current: 35 A
- Secondary rated current: 1 A
- Rated power: 0.2 VA
- Accuracy class: 1
- Rated continuous thermal current Icth: 100 %
- Rated short-time thermal current Ith: 60 x I / 1 s
- Rated surge current Idyn: 2.5 x Ith
- Rated frequency: 50 … 60 Hz
- Highest voltage for equipment Um: AC 720 Vrms
- Protection type: IP20
- Test voltage: AC 3 kV; 50 Hz; 1 min
- Connection technology: Push-in CAGE CLAMP®
- WAGO Connector: picoMAX 3.5, 2091-1122
- Solid conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
- Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Feedthrough for measurement conductor: Ø 7.5 mm
- Width: 27 mm
- Height: 46 mm
- Depth: 23 mm
- Mounting type: Closed current transformer
- Insulation class: E
- Flammability class per UL94: V2
- Housing material: PA 66
- Weight: 48.4 g
- Surrounding air temperature (operation): -10 … 55 °C
- Surrounding air temperature (storage): -20 … 70 °C
- Relative humidity: 5 … 85 % (without condensation)
- Operating altitude (max.): 2000 m
- Conformity marking: CE
- Standards/Specifications: EN 61869-1; EN 61869-2; UL
- Packaging type: BOX
- Country of origin: NL
- GTIN: 4050821864240
- Customs tariff number: 85043129900
- UL-Approvals: E356480
