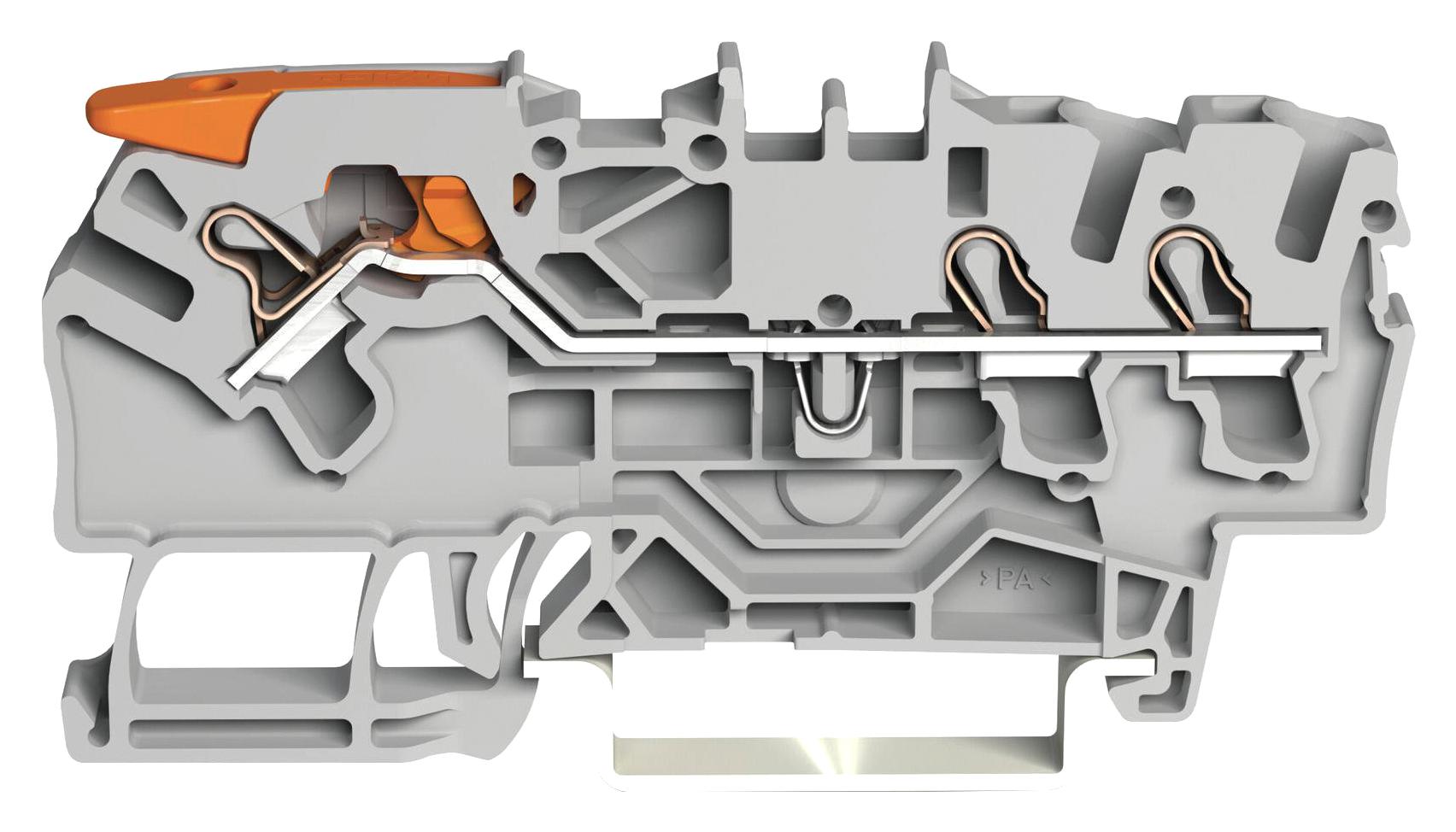

WAGO 21021301 Terminal Block
This 3-conductor through terminal block features Push-in CAGE CLAMP® technology for easy solid and fine-stranded conductor connections. It includes a lever and test port, side and center markings, suitable for DIN-rail mounting with dimensions for 35 x 15 and 7.5 mm profiles, and rated for 800 V with a current capacity of 24A. Ideal for modular industrial connections, it offers reliable electrical performance, ease of installation, and compatibility with various conductor types, making it suitable for complex electrical and control systems.
WAGO 21021301 Terminal Block Specifications:
- Number of conductors: 3
- Conductor cross-section: 0.25 ...4mm2 / 22...12 AWG
- Fine-stranded conductor with ferrule: 0.25 ...2.5mm2 / 22...14 AWG
- Strip length: 10...12mm / 0.39...0.47 inch
- Width: 5.2mm / 0.205 inch
- Height: 72.2mm / 2.843 inch
- Depth from DIN-rail: 32.9mm / 1.295 inch
- Material: Polyamide (PA66)
- Color: Gray
- Rated voltage: 800 V
- Rated surge voltage: 8kV
- Rated current: 24A
- Approvals: UL (UL 1059), CSA (C22.2), ATEX, IECEx
- Mounting: DIN-35 rail, horizontal type
- Dimensions: 35 x 15 mm profile, 1 mm thick steel or aluminum rails available
- Operating temperature: -55°C to +105°C
- Electrical ratings conform IEC/EN 60947-7-1
Buy the Buy WAGO 21021301 Part Number 21021301 Online
Order the WAGO 21021301 terminal block online today to ensure efficient, reliable, and easy wiring for industrial and automation applications. Featuring Push-in CAGE CLAMP® technology, test ports, side and center markings, and robust DIN-rail mounting, this product offers a safe and convenient connection solution for various conductor types. With high electrical ratings of 800 V and 24A and comprehensive certifications including UL, CSA, ATEX, and IECEx, the terminal block guarantees safety, durability, and optimal performance in demanding environments.
Buy WAGO 21021301 now and experience unmatched reliability and performance in electrical connections and automation systems.
