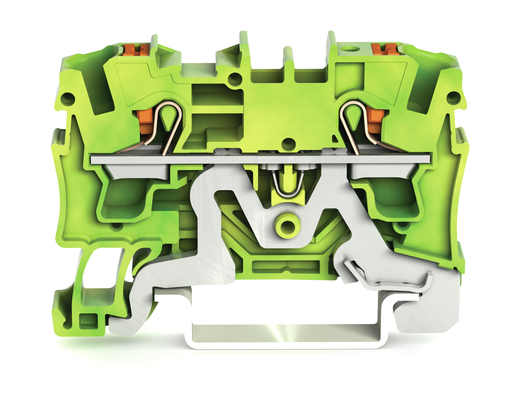

WAGO 22041207 2-Conductor Ground Terminal Block
The WAGO 2204-1207 is a robust and reliable 2-conductor ground terminal block ideal for industrial applications requiring secure grounding connections. Its push-in CAGE CLAMP® mechanism simplifies wiring, while the integrated test port allows for quick and easy verification of the connection. Designed for DIN-rail mounting, this terminal block provides a space-saving and organized solution for electrical enclosures. It is suitable for use in control cabinets, machinery, and other industrial environments where reliable grounding is essential.
WAGO 22041207 2-Conductor Ground Terminal Block Specifications:
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in, Push-button
- Connectable conductor materials: Copper
- Nominal cross-section: 4 mm²
- Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Solid conductor; push-in termination: 1 … 6 mm² / 14 … 10 AWG
- Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1.5 … 4 mm² / 18 … 12 AWG
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Strip length: 11 … 13 mm / 0.43 … 0.51 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Number of jumper slots: 2
- Width: 6.2 mm / 0.244 inch
- Height: 52.3 mm / 2.059 inch
- Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Color: green-yellow
- Insulation material: Polyamide (PA66)
- Weight: 12.3 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4055143711456
- Customs tariff number: 85369010000
