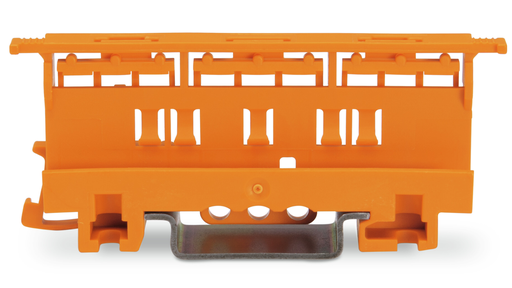

WAGO 221510 DIN Rail Mounting Carrier
The WAGO 221-510 mounting carrier offers a robust solution for organizing and securing WAGO 221 Series terminal blocks. Designed for both DIN-35 rail and screw mounting, it provides flexibility in installation. Constructed from Polyamide 66 (PA 66) with a V0 flammability rating, the carrier ensures safety and durability in industrial applications. It supports 2-, 3-, and 5-conductor connections (6 mm²) and simplifies conductor termination with the CAGE CLAMP® connection system. The carrier also facilitates easy testing through test slots and allows for strain relief and marking for clear identification.
WAGO 221510 DIN Rail Mounting Carrier Specifications:
- Series: 221 Series
- Mounting_Type: DIN-35 rail, Screw mount
- Compatible_Terminal_Blocks: 2-, 3-, 5-Leiter-Verbindungsklemmen (6 mm²) der Serie 221
- Color: orange
- Insulation_Material: Polyamide 66 (PA 66)
- Flammability_Class_UL94: V0
- Weight: 11.9 g
- Width: 19.3 mm
- Height_from_Upper_Edge_DIN_Rail: 28.3 mm
- Depth: 94.2 mm
- Packaging_Type: BOX
- Country_of_Origin: CN
- GTIN: 4055143736695
- Customs_Tariff_Number: 39269097900
