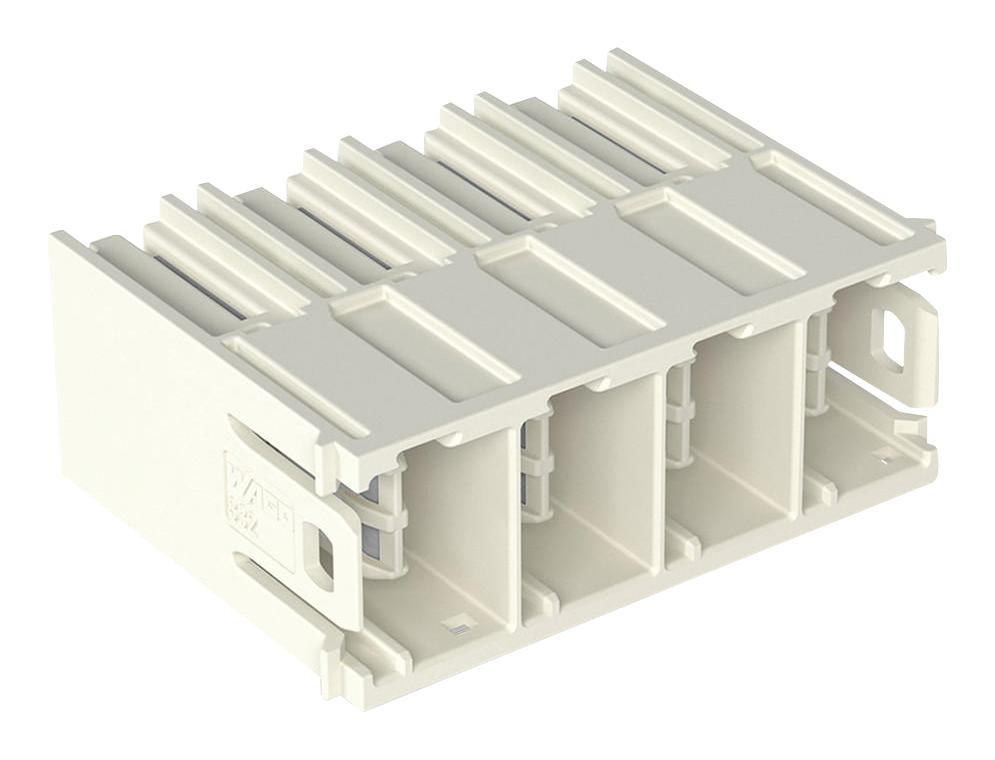

WAGO 8323625 PCB Terminal Block
The product is a high-performance PCB terminal block designed for power electronics and compact device connections. It features Push-in CAGE CLAMP technology for secure, maintenance-free wiring of solid and ferruled conductors, capable of handling conductor sizes up to 16 mm² or 25 mm² with tool-less operation. The terminal block offers space-saving, reliable connections, and options with levers for in-hand, tool-free wiring with tactile locking. Suitable for applications in power supplies, inverters, and servo drives, it supports quick recoding, and includes safety features such as protective contact caps and optional interlocks to prevent mismating.
WAGO 8323625 PCB Terminal Block Specifications:
- Conductor Cross-Section: 16 mm² to 25 mm²
- Rated Voltage: 1000 V
- Rated Current: 6 A to 47 A depending on series
- Connection Technology: Push-in CAGE CLAMP with lever operation
- Material: High-quality copper alloy
- Insulation Material: Polyamide (PA), UV resistant
- Temperature Range: -40°C to +105°C
- Poles: Single, straight or angled types available
- Certification: ULListed, IEC/EN 60664-1 compliant
- Application: Power supplies, frequency inverters, servo drives, high-density PCB connections
- Dimensions: Varies by series, with typical pin spacing of 10mm, 12mm, 16mm, or 25mm
- Mating Type: Suitable for both solid and fine-stranded conductors, with optional locking and recoding features
- Safety Features: Protective contact caps, optional interlock for reliable connection
- Installation: Tool-less with levers, or tool-actuated for specific models
Buy the Buy WAGO PCB Terminal Block Part Number 8323625 Online
Purchase the WAGO PCB Terminal Block Series8323625 online today and benefit from secure, tool-free wiring technology suitable for power electronics. Designed for high-density applications, it supports conductor sizes up to 16 or 25 mm² and features Push-in CAGE CLAMP technology for quick, maintenance-free connections. Its space-saving design makes it ideal for power supplies, inverters, and servo drives, ensuring maximum safety with protective contact caps and optional interlocks. Easy to recode and lock, it provides a dependable connection for demanding industrial applications.
Order your WAGO Series8323625 PCB Terminal Block today and ensure reliable, space-efficient power connections for high-performance electronic projects.
