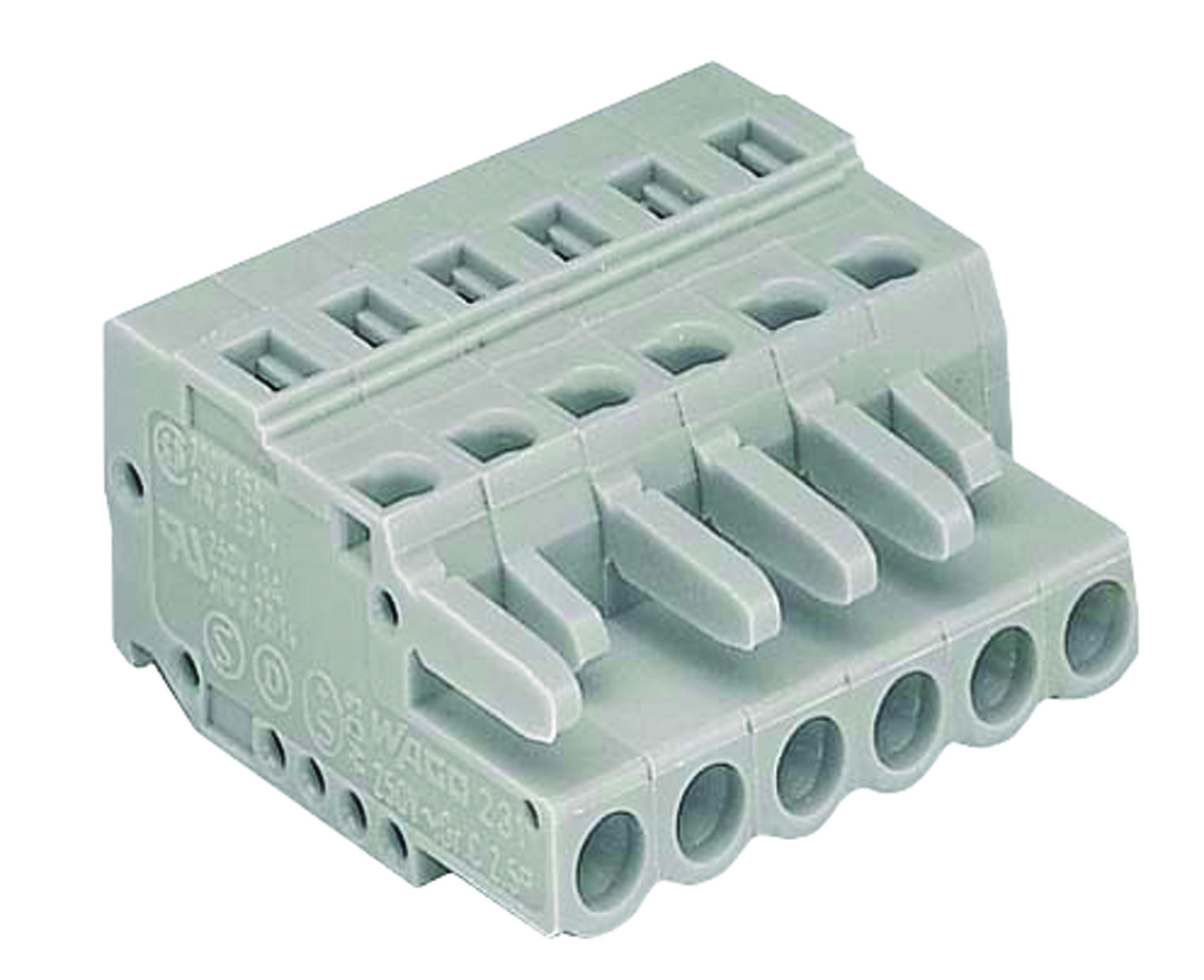

WAGO 231106026000 6 Pole Female Plug Connector
The WAGO 231-106/026-000 is a 6-pole female plug connector within WAGO's Multi Conn. System. It utilizes a CAGE CLAMP® connection for easy and vibration-proof termination. The integrated fixing flanges and coding fingers ensure secure and correct assembly. This connector is suitable for applications in control cabinets, automation systems, and power distribution, offering a reliable connection solution for various industrial environments. It is designed to accommodate wire cross-sections ranging from 0.08 mm² to 2.5 mm² (28-12 AWG).
WAGO 231106026000 6 Pole Female Plug Connector Specifications:
- Packing Unit: 50 pieces
- Pin Spacing: 5 mm / 0.197 in
- Pole Count: 6
- Cross Section Range (mm²): 0.08 - 2.5
- Cross Section Range (AWG): 28 - 12
- Connection Method: CAGE CLAMP®CONNECTION
- Measured Voltage: 250 V
- Measured Shock Voltage: 4 kV
- Pollution Degree: 3
- Current Intensity: 16 A
- Weight: 10.91 g
- Color: grey
- Number of Connection Points: 6
- Number of Potentials: 6
- Height: 14.3 mm / 0.563 in
- Width: 31.5 mm / 1.24 in
- Depth: 26.45 mm / 1.041 in
- Strip Length: 8 - 9 mm / 0.33 in
- Approval Office (ABS): 04-HG469925-PDA
- Approval Voltage (ABS): 400 V
- Approval Current (ABS): 16 A
- Approval Office (BV): 11915/A0
- Approval Voltage (BV): 400 V
- Approval Current (BV): 16 A
- Approval Office (CCA): 5764
- Approval Voltage (CCA): 250 V
- Approval Current (CCA): 16 A
- Approval Office (CSA): 154112-1466354
- Approval Voltage (CSA): 300 V
- Approval Current (CSA): 15 A
- Approval Office (DEMKO): 88126
- Approval Voltage (DEMKO): 250 V
- Approval Current (DEMKO): 16 A
- Approval Office (GL): 17296-00HH
- Approval Voltage (GL): 400 V
- Approval Current (GL): 16 A
- Approval Office (KEMA): 2083746.02
- Approval Voltage (KEMA): 250 V
- Approval Current (KEMA): 16 A
- Approval Office (KR): HMB05880-EL003
- Approval Voltage (KR): 250/400 V
- Approval Current (KR): 12/16 A
- Approval Office (LR): 96/20035
- Approval Voltage (LR): 400 V
- Approval Current (LR): 16 A
- Approval Office (RMR): 11130002
- Approval Voltage (RMR): 400 V
- Approval Current (RMR): 16 A
- Approval Office (UR): E45172
- Approval Voltage (UR): 300 V
- Approval Current (UR): 15 A
Buy the 231-106/026-000 WAGO 6 Pole Female Plug Connector | myMectronic
Purchase the WAGO 231-106/026-000 connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 231106026000?
You can click on the BUY or RFQ button to purchase 231106026000 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 231106026000?
You can download the 231106026000 datasheet or visit the WAGO website for support.
Who is the manufacturer of 231106026000?
WAGO
