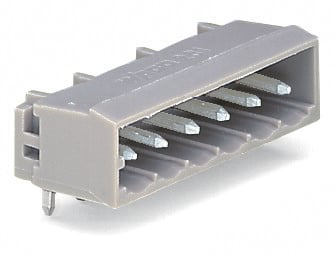

WAGO 231466001000 6-pole THT Header
The WAGO 231-466/001-000 is a 6-pole THT (Through-Hole Technology) male header designed for secure and reliable connections in PCB applications. Featuring 1.2 x 1.2 mm solder pins and an angled configuration, this header offers flexibility in PCB layout and mounting. The header is suitable for horizontal or vertical PCB mounting and is designed to enhance stability with its coding fingers. It is rated for a nominal current of up to 16A and is compliant with various industry standards including UL and CSA, making it suitable for a wide range of industrial and commercial applications.
WAGO 231466001000 6-pole THT Header Specifications:
- Color: gray
- Pin spacing: 5 mm
- Number of poles: 6
- Solder pin length: 3.8 mm
- Solder pin dimensions: 1.2 x 1.2 mm
- Drilled hole diameter: 1.7 mm
- Rated voltage (III/3): 250 V
- Rated surge voltage (III/3): 4 kV
- Rated voltage (III/2): 320 V
- Rated surge voltage (III/2): 4 kV
- Rated current: 16 A
- Rated voltage (II/2): 630 V
- Rated surge voltage (II/2): 4 kV
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage UL (1977): 600 V
- Rated current UL (1977): 15 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Total number of potentials: 6
- Number of connection types: 1
- Number of levels: 1
- Width: 33.2 mm
- Height: 12.2 mm
- Height from the surface: 8.4 mm
- Depth: 12 mm
- Material group: I
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Contact material: Electrolytic copper (E)Cu
- Contact plating: tin-plated
- Fire load: 0.036 MJ
- Weight: 2.3 g
- Limit temperature range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918930420
- Customs tariff number: 85366990990
