WAGO 231545001000 THT Male Header Connector

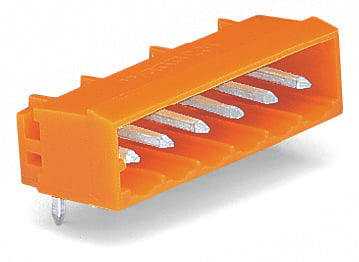

The WAGO 231-545/001-000 is a robust THT male header connector designed for secure and reliable connections in PCB applications. Featuring a 5.08mm pin spacing and angled solder pins, it simplifies PCB mounting and integration. Constructed with polyamide 66 (PA 66) for excellent insulation and a V0 flammability rating, this connector ensures safety and durability. It is suitable for a wide range of industrial applications requiring secure and efficient power distribution and signal transmission. The header is compatible with various approvals including UL, CSA, and KEMA/KEUR, ensuring compliance with international standards.
WAGO 231545001000 THT Male Header Connector Specifications:
- Pin spacing: 5.08 mm / 0.2 inch
- Width: 79.32 mm / 3.123 inch
- Height: 12.2 mm / 0.48 inch
- Height from the surface: 8.4 mm / 0.331 inch
- Depth: 12 mm / 0.472 inch
- Solder pin length: 3.8 mm
- Solder pin dimensions: 1 x 1 mm
- Drilled hole diameter (tolerance): 1.4 mm (- … +0.1)
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- No. of poles: 15
- Total number of potentials: 15
- Number of connection types: 1
- Number of levels: 1
- Color: orange
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.084 MJ
- Weight: 4.7 g
- Limit temperature range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: PL
- GTIN: 4044918867399
- Customs Tariff No.: 85366990990
