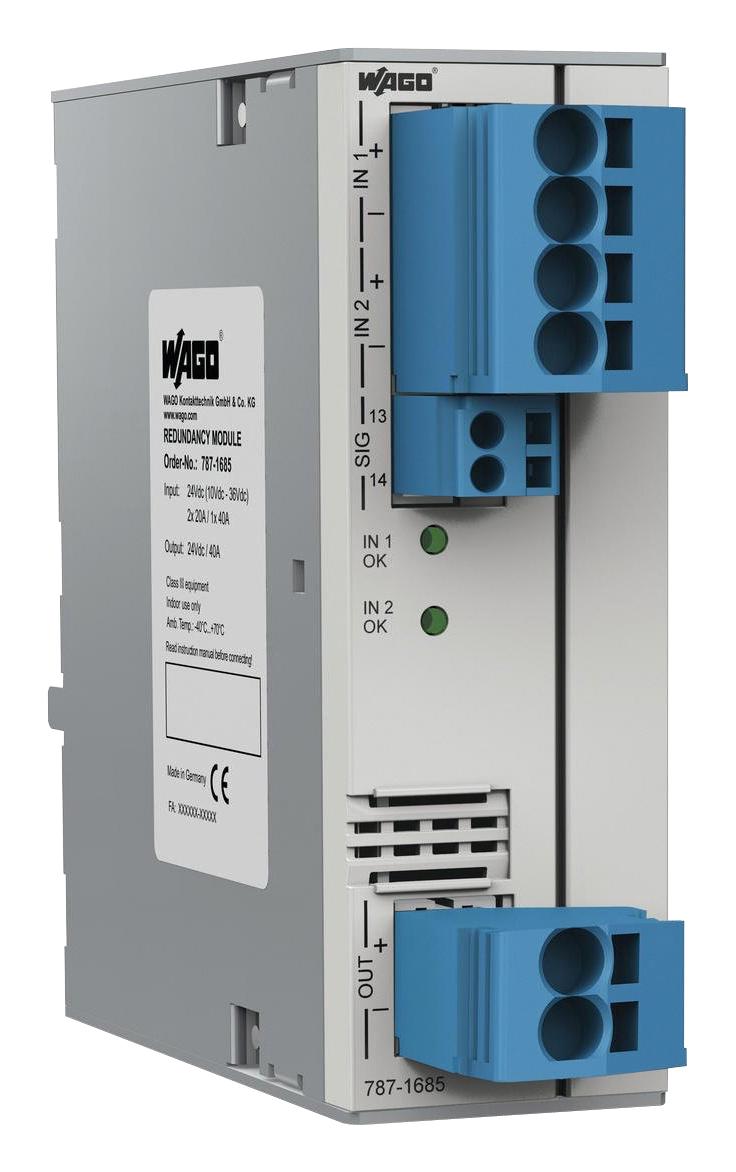

WAGO 7871685 Power Redundancy Module
This redundancy module ensures fail-safe power distribution with dual 24 VDC inputs, supporting continuous 40 A output current, suitable for power supplies with Power Boost and TopBoost. It features low-loss MOSFET decentralization of two power supplies, communicates via signaling LEDs, and offers high efficiency of 99.5%. The module connects to power supplies with isolated output voltage (SELV/PELV), operates at a switching frequency of 5 kHz, and is protected against reverse voltage and short circuits. Its robust IP20 rated enclosure guarantees durability in industrial environments, making it ideal for critical automation systems requiring reliable power redundancy.
WAGO 7871685 Power Redundancy Module Specifications:
- Input Voltage Range: 2xDC 10...36V
- Nominal Input Voltage: 2xDC 24V
- Output Voltage: 24 VDC
- Output Current: 40 A
- Continuous Output Power: 960 W
- PowerBoost: DC 120A (4s); DC 100A (8s)
- TopBoost: DC 200A (50 ms)
- Frequency: 5 kHz
- Efficiency: 99.5%
- Supply Connection: WAGO Connector, compatible with solid and fine-stranded conductors
- Dimensions: Width 42 mm, Height 127 mm, Depth 139.5 mm
- Mounting: DIN-35 rail
- Enclosure: IP20 rated
- Operating Temperature: -40°C to 70°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 96%
- Protection Class: CE, UL Listed
- Standards Compliance: EN 61204-3, EN 60950-1, UL 60950-1, UL 508
Buy the Buy WAGO Redundancy Module Item Number 787-1685 Online
Purchase the WAGO Power Redundancy Module online today and enjoy seamless power backup in automation systems. Designed for critical applications, it offers continuous 40 A current, high efficiency, and easy DIN-35 rail mounting. With support for Power Boost and TopBoost, this module guarantees fail-safe operation and reliable power distribution. Its IP20 enclosure ensures durability, while the signaling LEDs facilitate status monitoring. Order now to enhance power system reliability and operational stability in your industrial environment.
Buy WAGO 787-1685 redundancy module now and ensure fail-safe, reliable power with high efficiency and robust industrial design.
Frequently Asked Questions
Where can I buy WAGO 7871685?
You can click on the BUY or RFQ button to purchase 7871685 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 7871685?
You can download the 7871685 datasheet or visit the WAGO website for support.
Who is the manufacturer of 7871685?
WAGO
