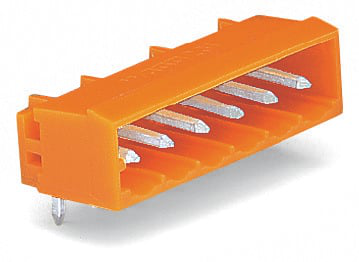

WAGO 231568001000 Right Angle Solder Pin Header
The WAGO 231-568/001-000 is a right-angle solder pin header designed for reliable connections in various industrial applications. Its right-angle design allows for efficient PCB layout and space optimization. With an 8-pole configuration and a 5.08mm pin spacing, this header provides a secure and organized connection solution. It is suitable for applications requiring parallel mating direction to the PCB and is known for its robust construction and ease of use.
WAGO 231568001000 Right Angle Solder Pin Header Specifications:
- Product Description: HEADER; RIGHT ANGLE SOLDER PIN, 1.2 X 1.2 MM/ 0.047 X 0.047 IN; 8 POLE; PIN SPACING 5.08 MM / 0.2 IN; MATING DIRECTION PARALLEL TO PCB; WITH CLOSED END
- Packing Unit: 100 (4*25 pieces)
- Pin Spacing: 5.08 mm / 0.2 in
- Pole Count: 8
- Measured Voltage EN: 250 V
- Measured Shock Voltage: 4 kV
- Pollution Degree: 3
- Current Intensity EN: 16 A
- Weight: 3.244 g
- Color: orange
- Height: 8.4 mm / 0.331 in
- Width: 43.84 mm / 1.726 in
- Depth: 12 mm / 0.472 in
- BV Approval No.: 11915/A0
- Voltage [V]: 400
- Current [A]: 16
- Cross Section [mm²]: 2.5
- CCA Approval No.: 5764
- Voltage [V] CCA: 250
- Current [A] CCA: 16
- Cross Section [mm²] CCA: 1.2x,21
- CSA Approval No.: 154112-1466354
- Voltage [V] CSA: 300
- Current [A] CSA: 15
- KEMA Approval No.: 2083746.02
- Voltage [V] KEMA: 250
- Current [A] KEMA: 16
- Cross Section [mm²] KEMA: 1.2x,21
- KR Approval No.: HMB05880-EL003
- Voltage [V] KR: 250/400
- Current [A] KR: 12/16
- Cross Section [mm²] KR: 2.5
- NEMKO Approval No.: P94101840
- Voltage [V] NEMKO: 250
- Current [A] NEMKO: 2.5
- UR Approval No.: E45172
- Voltage [V] UR: 300
- Current [A] UR: 15
Buy the 231-568/001-000 WAGO Right Angle Solder Pin Header | myMectronic
Purchase the WAGO 231-568/001-000 header securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 231568001000?
You can click on the BUY or RFQ button to purchase 231568001000 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 231568001000?
You can download the 231568001000 datasheet or visit the WAGO website for support.
Who is the manufacturer of 231568001000?
WAGO
