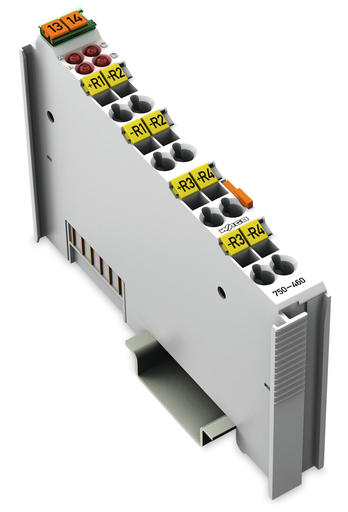

WAGO 750460 4-Channel Analog Input Module
The WAGO 750-460 is a 4-channel analog input module specifically engineered for connecting Pt100/RTD resistance sensors. This module simplifies temperature measurement by automatically linearizing the entire temperature range, ensuring accurate readings. A red LED provides a clear indication of any sensor errors. The module's robust design and reliable performance make it suitable for industrial automation, process control, and building management systems where precise temperature monitoring is critical. It supports a wide temperature range and offers a resolution of 0.1 °C, enabling detailed analysis and control.
WAGO 750460 4-Channel Analog Input Module Specifications:
- Number of analog inputs: 4
- Total number of channels (module): 4
- Type of signal: Resistance measurement
- Sensor connection: 4 x (2-conductor)
- Bit width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
- Resolution (over entire range): 0.1 °C
- Conversion time (typ. ≤): 250 ms
- Messfehler, Bezugstemperatur: 25 °C
- Messfehler, Abweichung max. vom Messbereichsendwert: 0.2 %
- Temperaturfehler max. vom Messbereichsendwert: 0.01 %/K
- Measuring current (typ.): 0.5 mA
- Sensor types: Pt100
- Temperature range: -200 … +850 °C
- System supply voltage: DC 5 V; via data contacts
- Current consumption, system supply (5 V): 65 mA
- Isolation: 500 V system/supply
- Connection technology: In-/Outputs: 8 x CAGE CLAMP®
- Connection type (1): Inputs/Outputs
- Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Width: 12 mm / 0.472 inch
- Height: 69.8 mm / 2.748 inch
- Height from upper-edge of DIN-35 rail: 62.6 mm / 2.465 inch
- Depth: 100 mm / 3.937 inch
- Color: light gray
- Housing material: Polycarbonate, polyamide 6.6
- Weight: 51.8 g
- Conformity marking: CE
- Surrounding air (operating) temperature: 0 … 55 °C
- Surrounding air (storage) temperature: -40 … 85 °C
- Protection class: IP20
- Degree of pollution (5): 2 per IEC 61131-2
- Operating altitude: 0 … 2000 m
- Mounting position: horizontal (standing/lying) or vertical
- Relative air humidity (no condensation): 95 %
- Vibration resistance: acc. to IEC 60068-2-6
- Shock resistance: 15g per IEC 60068-2-27
- EMC immunity to interference: acc. to EN 61000-6-2
- EMC emission of interference: acc. to EN 61000-6-4
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H S contaminant concentration: 10 ppm
- Permissible SO2 contaminant concentration: 25 ppm
- Product Group: 15 (Remote I/O)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454848927
- Customs Tariff No.: 85389099990
