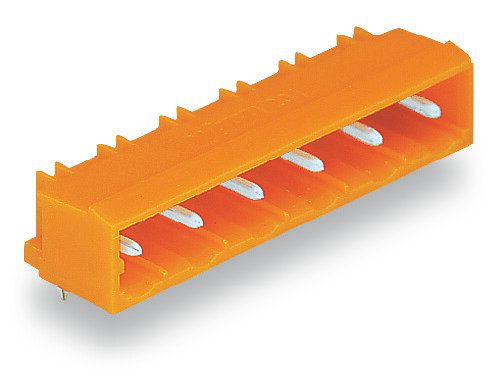

WAGO 231962001000 THT Male Header
The WAGO 231-962/001-000 is a robust THT male header suitable for horizontal or vertical PCB mounting. Its 7.62mm pin spacing and 1.2 x 1.2mm solder pins provide secure connections and enhanced stability. This header is ideal for applications requiring reliable power and signal transmission in industrial control systems, automation equipment, and other electronic devices. It is RoHS compliant and holds various approvals including UL, CSA, and ABS, ensuring adherence to stringent safety and performance standards.
WAGO 231962001000 THT Male Header Specifications:
- Color: orange
- Pin Spacing: 7.62 mm
- Number of Poles: 2
- Solder Pin Length: 3.8 mm
- Solder Pin Dimensions: 1.2 x 1.2 mm
- Rated Voltage (III/3): 500 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Voltage (III/2): 630 V
- Rated Surge Voltage (III/2): 6 kV
- Nominal Voltage (II/2): 1000 V
- Rated Surge Voltage (II/2): 6 kV
- Rated Current: 16 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 15 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage UL (1977): 600 V
- Rated Current UL (1977): 15 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 15 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Total Number of Potentials: 2
- Number of Connection Types: 1
- Number of Levels: 1
- Width: 15.82 mm
- Height: 12.2 mm
- Height from the Surface: 8.4 mm
- Depth: 12 mm
- Material Group: I
- Insulation Material: Polyamide 66 (PA 66)
- Flammability Class per UL94: V0
- Contact Material: Electrolytic copper (E) Cu
- Contact Plating: tin-plated
- Fire Load: 0.019 MJ
- Weight: 1 g
- Limit Temperature Range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918932363
- Customs Tariff Number: 85366990990
