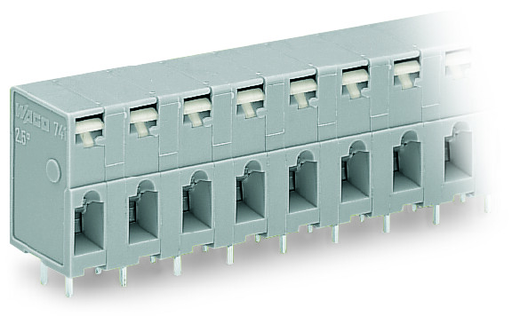

WAGO 741302 2-pole PCB Terminal Block
The WAGO 741-302 is a feedthrough PCB terminal strip designed for easy and reliable wiring in electronic applications. Its push-button actuated CAGE CLAMP mechanism simplifies conductor connection, while the integrated test slot allows for convenient testing. The terminal block is rated for nominal voltages up to 400V (III/3) and currents up to 16A, and is certified to UL, CSA, and EN standards. It is ideal for use in industrial control panels, power supplies, and other electronic equipment where secure and efficient connections are required.
WAGO 741302 2-pole PCB Terminal Block Specifications:
- Rated Voltage (III/3): 400 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Voltage (III/2): 630 V
- Rated Surge Voltage (III/2): 6 kV
- Rated Voltage (II/2): 1000 V
- Rated Surge Voltage (II/2): 6 kV
- Rated Current: 16 A
- Pin Spacing: 7.5 mm
- Pole No.: 2
- Total Number of Connection Points: 2
- Total Number of Potentials: 2
- Solid Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor with Insulated Ferrule: 0.25 … 1.5 mm²
- Fine-Stranded Conductor with Uninsulated Ferrule: 0.25 … 1.5 mm²
- Strip Length: 5 … 6 mm / 0.2 … 0.24 inch
- Width: 14 mm
- Height: 22.5 mm
- Height from Surface: 18.5 mm
- Depth: 12.8 mm
- Solder Pin Length: 4 mm
- Solder Pin Dimensions: 0.7 x 0.7 mm
- Drilled Hole Diameter: 1.1 mm
- Material: Polyamide 66 (PA66)
- Flammability Class: V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E) Cu
- Contact Plating: tin-plated
- Weight: 3.2 g
- Limit Temperature Range: -60 … +105 °C
- Packaging Type: BOX
- Country of Origin: CH
- GTIN: 4044918680127
- Customs Tariff Number: 85369010000
Buy the 741-302 WAGO 2-pole PCB Terminal Block | myMectronic
Purchase the WAGO 741-302 PCB terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 741302?
You can click on the BUY or RFQ button to purchase 741302 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 741302?
You can download the 741302 datasheet or visit the WAGO website for support.
Who is the manufacturer of 741302?
WAGO
