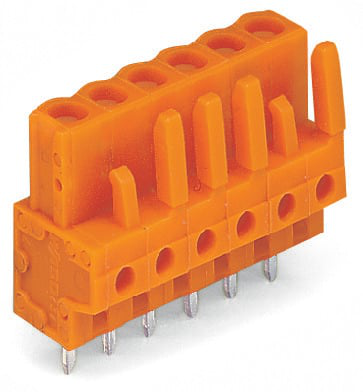

WAGO 232170 10-pole Female Header
The WAGO 232-170 is a 10-pole female header designed for reliable connectivity in various industrial applications. It allows for horizontal or vertical PCB mounting using straight or angled solder pins, making it versatile for different design requirements. The header's touch-proof PCB outputs enhance safety, while coding fingers simplify identification. It is suitable for board-to-board and board-to-wire connections, contributing to efficient and secure electrical systems. The header is constructed with polyamide 66 (PA 66) and tin-plated copper alloy contacts, ensuring durability and optimal performance.
WAGO 232170 10-pole Female Header Specifications:
- Pin Spacing: 5.08 mm / 0.2 inch
- Width: 52.3 mm / 2.059 inch
- Height: 23.25 mm / 0.915 inch
- Height from Surface: 18.25 mm / 0.719 inch
- Depth: 11.6 mm / 0.457 inch
- Solder Pin Length: 5 mm
- Solder Pin Dimensions: 0.6 x 1 mm
- Drilled Hole Diameter: 1.3 mm (tolerance -0.1/+0.1)
- Number of Poles: 10
- Total Connection Points: 10
- Total Potentials: 10
- Rated Voltage (III / 3): 320 V
- Rated Impulse Voltage (III / 3): 4 kV
- Rated Voltage (III / 2): 320 V
- Rated Voltage (II / 2): 630 V
- Rated Impulse Voltage (II / 2): 4 kV
- Rated Current: 12 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 15 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage per UL 1977 (factory wiring only): 600 V
- Rated Current per UL 1977 (factory wiring only): 15 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 15 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Material Group: I
- Insulating Material: Polyamide 66 (PA 66)
- Flammability Class per UL94: V0
- Contact Material: Copper alloy
- Contact Plating: tin-plated
- Fire Load: 0.145 MJ
- Weight: 9.1 g
- Color: orange
- Operating Temperature Range: -60 … +85 °C
