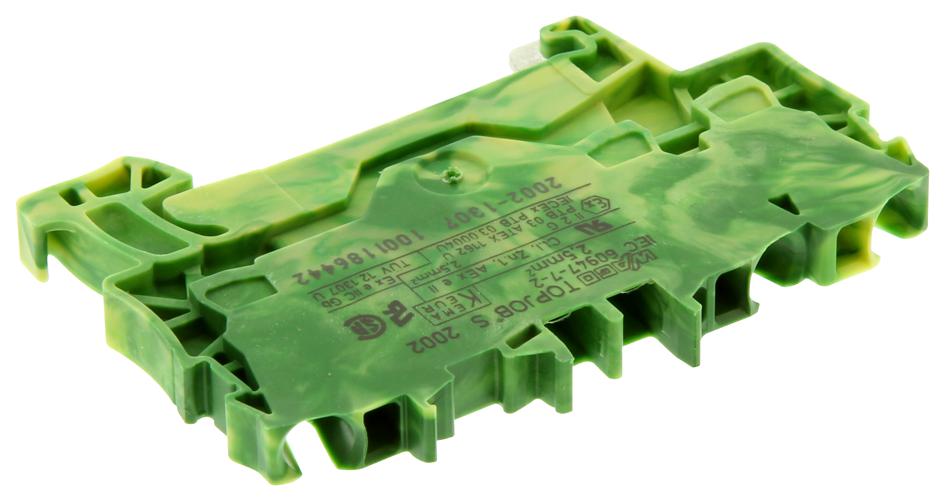

WAGO 20021307 3-conductor ground terminal block
The WAGO 2002-1307 is a robust and reliable 3-conductor ground terminal block designed for use in demanding industrial environments, particularly those requiring Ex e II safety. Its Push-in CAGE CLAMP® connection technology ensures quick and secure terminations, while the side and center marking options simplify identification and maintenance. The terminal block is suitable for mounting on both 35 x 15 and 35 x 7.5 mm DIN rails, offering flexibility in panel design. It is ideal for applications requiring a secure and reliable ground connection in electrical distribution systems.
WAGO 20021307 3-conductor ground terminal block Specifications:
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor, push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 1 … 2.5 mm² / 18 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1 … 2.5 mm² / 18 … 12 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Total number of connection points: 3
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Number of jumper slots: 2
- Width: 5.2 mm / 0.205 inch
- Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
- Depth: 59.2 mm / 2.33 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
- Color: green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.1 MJ
- Weight: 9.1 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4017332999274
- Customs Tariff No.: 85369010000
