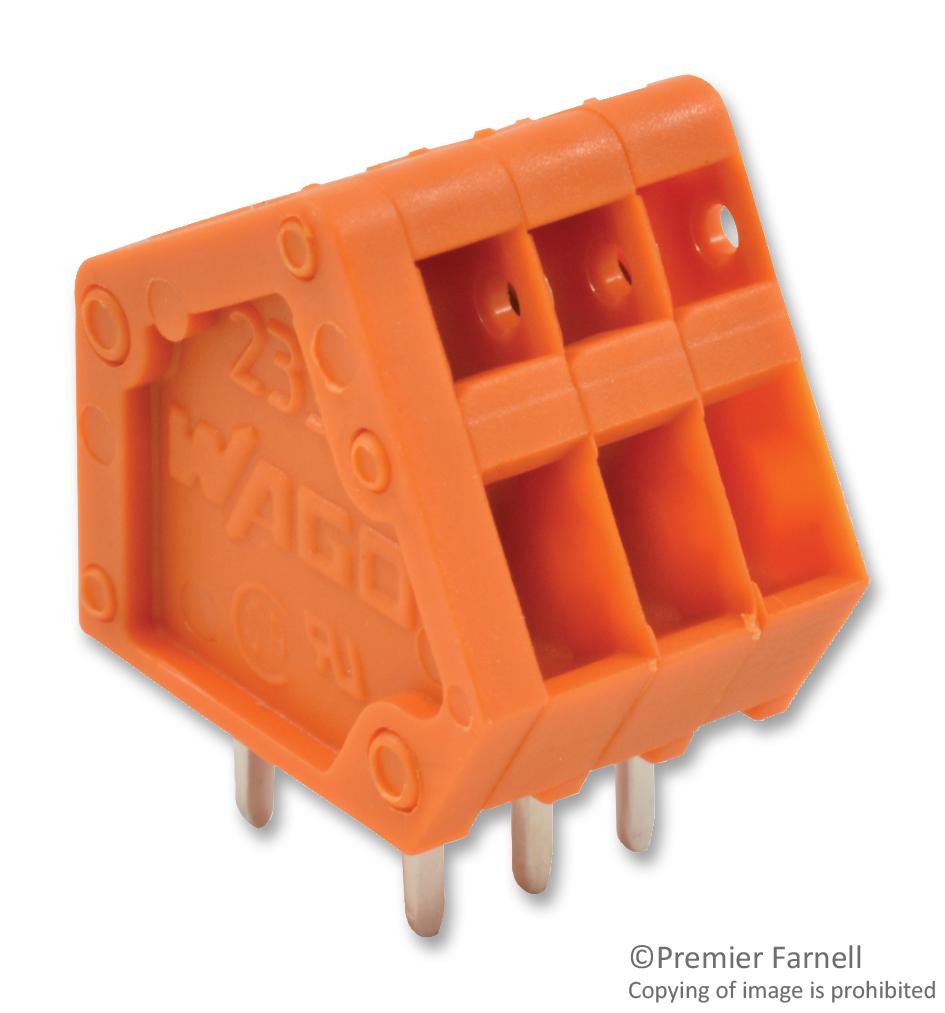

WAGO 233403 3-Pole PCB Terminal Strip
The WAGO 233-403 is a 3-pole PCB terminal strip designed for reliable connections in a variety of industrial applications. Its compact size and CAGE CLAMP® connection technology ensure secure and efficient conductor termination. The double solder pins provide increased mechanical stability, while the 2.54mm pin spacing allows for easy integration into existing PCB layouts. Suitable for applications requiring robust and space-saving terminal blocks, this strip is ideal for automation, control systems, and power distribution.
WAGO 233403 3-Pole PCB Terminal Strip Specifications:
- No. of poles: 3
- Pin Spacing: 2.54 mm / 0.1 in
- Total number of connection points: 3
- Total number of potentials: 3
- Color: orange
- Overvoltage category EN 1: III
- Pollution degree (1): 2
- Rated voltage EN (1) [V]: 160 [V]
- Rated surge voltage (1) [kV]: 2.5 [kV]
- Nominal current [A]: 6 [A]
- Overvoltage category EN 2: II
- Degree of pollution (2): 2
- Rated voltage EN (2) [V]: 320 [V]
- Rated surge voltage (2) [kV]: 2.5 [kV]
- Nominal current (2) [A]: 6 [A]
- Overvoltage category EN 3: III
- Degree of pollution (3): 3
- Rated voltage EN (3) [V]: 63 [V]
- Rated surge voltage (3) [kV]: 2.5 [kV]
- Nominal current (3) [A]: 6 [A]
- Number of individual connection objects at the product: 1
- Connection technology (1): CAGE CLAMP®
- Solid sizes 1: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-stranded wires 1: 0.08 … 0.5 mm² / 28 … 20 AWG
- Fine-stranded wires with insulated ferrule 1: 0.25 mm² / AWG
- Fine-stranded wires with uninsulated ferrule 1: 0.25 mm² / AWG
- Strip length 1: 5 … 6 mm / 0.2 … 0.24 in
- Conductor entry angle to the PCB 1 [°]: 30 [°]
- Solder pin arrangement: in-line solder pin
- Solder pin length [mm]: 4 [mm]
- Solder pin width A [mm]: 0.5 [mm]
- Solder pin width B [mm]: 0.75 [mm]
- Tolerance of drilled hole [mm]: 1.1(+ 0.1) [mm]
- Material group: I
- Insulating material: Polyamide 66 (PA 66)
- Flammability rating per UL 94: V0
- Limit temperature range: -60 C … 105 C
- Clamping spring material: Chrome-nickel spring steel (CrNi)
- Contact material: Electrolytic copper (Ecu)
- Contact plating: tin-plated
- Fire load [MJ]: 0.019 [MJ]
- Weight [g]: 1.13 [g]
- Width: 9.92 mm / 0.391 in
- Height: 15.7 mm / 0.618 in
- Height from the surface: 11.7 mm / 0.461 in
- Length: 12.1 mm / 0.476 in
