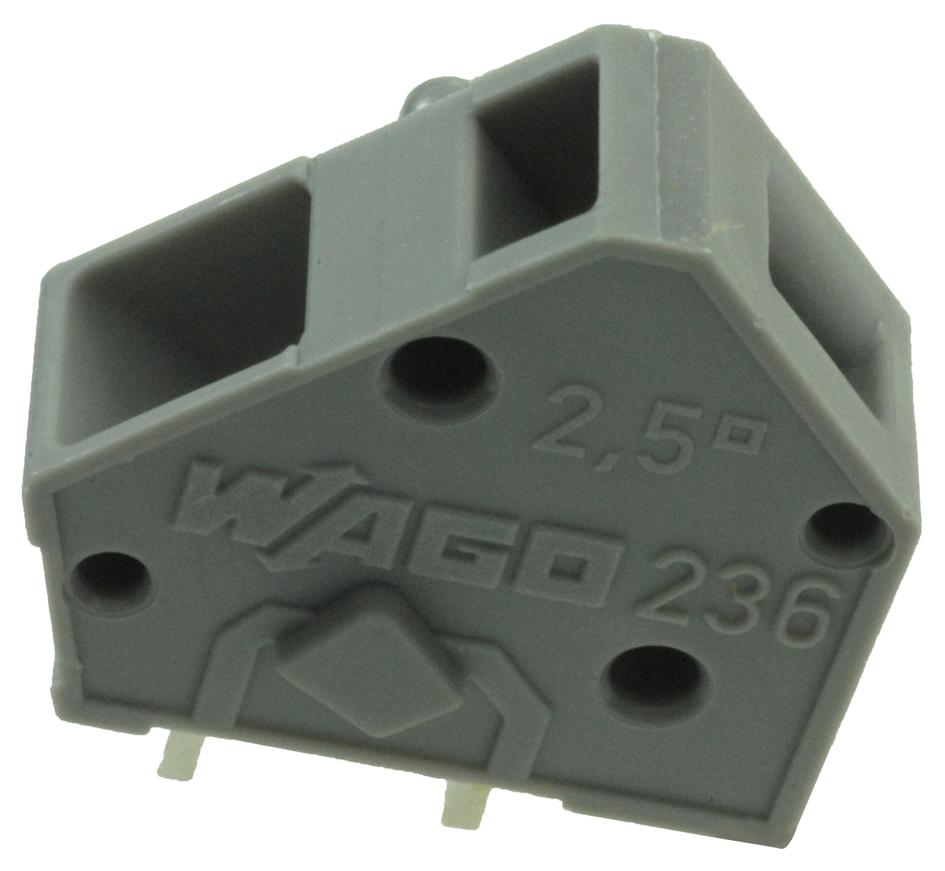

WAGO 236401 Modular Terminal Block
The 236-401 is a grey modular PCB terminal block featuring CAGE CLAMP® connection technology. It allows screwdriver actuation with the connection aligned either parallel or perpendicular to the conductor entry. Designed for custom terminal strip assemblies, it offers flexible wiring options with a 45° connection angle suitable for various industrial applications. Made from durable polyamide 6.6 insulation material, it has tin-plated electrolytic copper contacts for reliable conductivity. Supports front and side-entry wiring with chrome-nickel spring steel spring, ensuring long-lasting performance. Market demand may affect delivery times, and discounts are not available.
WAGO 236401 Modular Terminal Block Specifications:
- Pin spacing: 5/5.08 mm / 0.2 in
- Rated voltage EN (1): 320 V
- Rated surge voltage (1): 4 kV
- Rated voltage EN (2): 630 V
- Rated surge voltage (2): 4 kV
- Rated voltage EN (3): 250 V
- Rated surge voltage (3): 4 kV
- Nominal current: 24 A
- Connection technology: CAGE CLAMP®
- Solder pin length: 4 mm
- Solder pin width: 0.7 mm
- Material: Polyamide 66 (PA 66), flammability UL 94 V-0
- Contact material: Electrolytic copper, tin-plated
- Conductor sizes: 0.08 ... 2.5 mm² (28 ... 12 AWG)
- Ferrule compatibility: 0.25 ... 1.5 mm²
- Strip length: 5 ... 6 mm
- Degree of pollution: 2
- Overvoltage category: EN 1, 2, 3
- Operating temperature: -60°C to +105°C
Buy the WAGO Series Modular PCB Terminal Block: 236401
Order the WAGO 236401 modular terminal block online today for robust and reliable electrical connections. It features CAGE CLAMP® technology for quick and secure wiring, supporting front and side-entry configurations. Suitable for industrial environments, the terminal block offers a 45° conductor entry angle, supporting various wire sizes from 0.08 to 2.5 mm², including ferrules. Made from high-quality polyamide 66 with electrolytic copper contacts, it ensures durable performance and long-term stability. Perfect for custom wiring assemblies, shop now for fast delivery and reliable performance.
Get WAGO 236401 today—built for reliable connections and versatile wiring options in industrial control applications.
Frequently Asked Questions
Where can I buy WAGO 236401?
You can click on the BUY or RFQ button to purchase 236401 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 236401?
You can download the 236401 datasheet or visit the WAGO website for support.
Who is the manufacturer of 236401?
WAGO
