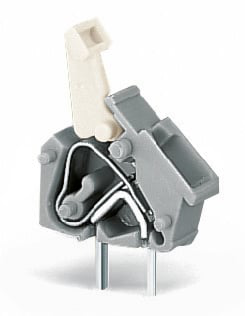

WAGO 256740 Stackable PCB Terminal Block
The WAGO 256-740 is a versatile stackable PCB terminal block designed for efficient and reliable connections. Its push-button mechanism simplifies wiring, while the CAGE CLAMP® connection ensures secure and durable terminations. The ability to adjust pin spacing makes it adaptable to various PCB layouts. Suitable for a wide range of industrial applications, this terminal block offers a robust and user-friendly solution for power and signal transmission.
Authorized Distributors
Source:Master Electronics
Part No:256-740
Stock:0
Inv Date:06-04-2026
Price: Unit price: $0.7956
Buy/RFQ:
Source:Onlinecomponents.com
Part No:256-740
Stock:0
Inv Date:06-04-2026
Price: Unit price: $0.7956
Buy/RFQ:
WAGO 256740 Stackable PCB Terminal Block Specifications:
- Nominal Voltage (III/3): 250 V
- Rated Surge Voltage (III/3): 4 kV
- Nominal Voltage (III/2): 320 V
- Rated Surge Voltage (III/2): 4 kV
- Nominal Voltage (II/2): 630 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 24 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 15 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 15 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Push-button
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor with Ferrule Size: 0.25 … 1.5 mm²
- Strip Length: 5 … 6 mm / 0.2 … 0.24 inch
- Pin Spacing: 5/5.08 mm / 0.197/0.2 inch
- Width: 7.8 mm / 0.307 inch
- Height: 22.2 mm / 0.874 inch
- Height from Surface: 18.2 mm / 0.717 inch
- Depth: 17.6 mm
- Solder Pin Length: 4 mm
- Solder Pin Dimensions: 0.7 x 0.7 mm
- Drilled Hole Diameter: 1.1 mm (+0.1)
- Insulation Material: Polyamide (PA66)
- Flammability Class: V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E) Cu
- Contact Plating: tin-plated
- Fire Load: 0.014 MJ
- Weight: 1 g
- Pin spacing adjustment: Compressing PCB terminal strips or pulling them apart
