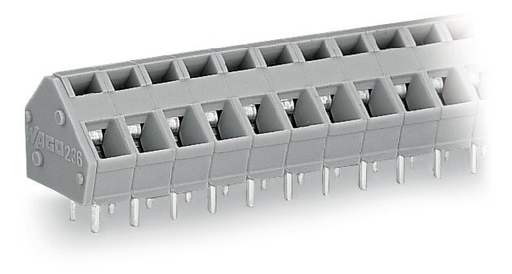

WAGO 236402 PCB Terminal Strip 2 Poles
The WAGO 236-402 is a 2-pole PCB terminal strip designed for reliable electrical connections in industrial environments. With a pin spacing of 5mm, it accommodates wire gauges ranging from 28 to 12 AWG. The strip is rated for a voltage of 320V and a shock voltage of 4kV, ensuring safe and dependable operation. Its compact dimensions (13mm height, 12.3mm width, and 14mm depth) make it suitable for space-constrained applications. The terminal strip is characterized by its grey color and a strip length of 5-6mm. It is ideal for applications requiring secure and organized wiring in control panels, machinery, and automation systems.
WAGO 236402 PCB Terminal Strip 2 Poles Specifications:
- Cross section1: 0.08 - 2.5 mm²
- Cross section2: 28 - 12 AWG
- Strip length: 5 - 6 mm
- Measured voltage: 320 V
- Measured shock voltage: 4 kV
- Pollution degree: 2
- Current intensity: 24 A
- RM: 5 mm
- P: 2
- Height: 13 mm
- Width: 12.3 mm
- Depth: 14 mm
- No. of connection Points: 2
- No. ofpotentials: 2
- COLOR: grau
- Comment: L =(No. ofpoles x Pin Spacing)+ 2,3 mm
- Dimensions: 1,1 + 0,1 mm
