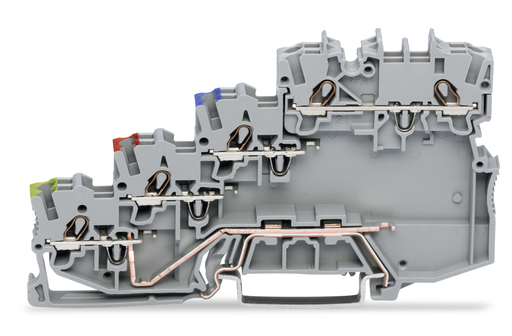

WAGO 20005417 4-conductor sensor terminal block
The WAGO 2000-5417 is a versatile 4-conductor sensor terminal block ideal for industrial automation and sensor integration. Designed for PNP (positive) switching sensors, it incorporates a ground contact and colored conductor entries for easy identification and organization. The terminal block's Push-in CAGE CLAMP® mechanism ensures reliable and vibration-resistant connections. Its double spacing per pole maximizes connectivity, enabling efficient use of space and reducing the number of terminal blocks required for multiple sensors. This feature is particularly beneficial in applications where space is limited and numerous sensors need to be connected to a power supply.
WAGO 20005417 4-conductor sensor terminal block Specifications:
- Nominal voltage (III/3): 250 V
- Rated surge voltage (III/3): 4 kV
- Rated current: 13.5 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 15 A
- Rated voltage CSA (Use Group C): 300 V
- Rated current CSA (Use Group C): 10 A
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 1 mm²
- Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
- Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
- Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
- Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
- Strip length: 9 … 11 mm / 0.35 … 0.43 inch
- Total number of connection points: 10
- Total number of potentials: 5
- Number of levels: 4
- Wiring type: Front-entry wiring
- Number of jumper slots: 5
- Width: 7 mm / 0.276 inch
- Height: 97.3 mm / 3.831 inch
- Depth from upper edge of DIN-rail: 52.4 mm / 2.063 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Color: gray
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 0.313 MJ
- Weight: 20.3 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4055143442251
- Customs tariff number: 85369010000
