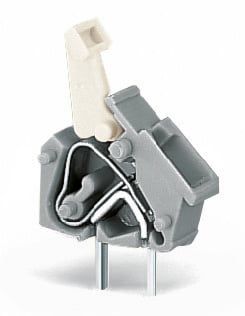

WAGO 256748 Stackable PCB Terminal Block
The WAGO 256-748 stackable PCB terminal block is designed for efficient and reliable connections in printed circuit boards. Its angled push-buttons simplify top-of-unit actuation, while the CAGE CLAMP® connection provides secure and tool-free operation. The block supports flexible pin spacing, allowing adaptation to different PCB layouts. It is ideal for applications requiring frequent wiring changes or in-the-field adjustments, offering a convenient and robust solution for electrical connections. It is suitable for a wide range of industrial applications, including automation, control systems, and power distribution.
WAGO 256748 Stackable PCB Terminal Block Specifications:
- Rated Voltage (III/3): 250 V
- Rated Surge Voltage (III/3): 4 kV
- Rated Voltage (III/2): 320 V
- Rated Surge Voltage (III/2): 4 kV
- Rated Voltage (II/2): 630 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 24 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 15 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 15 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Push-button
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor w/ Insulated Ferrule: 0.25 … 1.5 mm²
- Fine-Stranded Conductor w/ Uninsulated Ferrule: 0.25 … 1.5 mm²
- Strip Length: 5 … 6 mm / 0.2 … 0.24 inch
- Conductor Connection Direction: 45 °
- Pin Spacing: 5/5.08 mm / 0.197/0.2 inch
- Width: 7.8 mm / 0.307 inch
- Height: 22.2 mm / 0.874 inch
- Height from Surface: 18.2 mm / 0.717 inch
- Depth: 17.6 mm / 0.693 inch
- Solder Pin Length: 4 mm
- Solder Pin Dimensions: 0.7 x 0.7 mm
- Drilled Hole Diameter: 1.1 (+0.1) mm
- Material Group: I
- Insulation Material: Polyamide (PA66)
- Flammability Class: V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E) Cu
- Contact Plating: tin-plated
- Fire Load: 0.013 MJ
- Weight: 0.9 g
Buy the 256-748 WAGO Stackable PCB Terminal Block | myMectronic
Purchase the WAGO 256-748 PCB terminal block securely and conveniently online.
Buy Now
