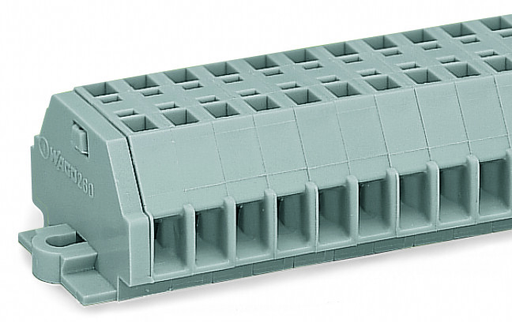

WAGO 260106 6-pole Terminal Strip
The WAGO 260-106 is a 6-pole terminal strip suitable for various industrial applications requiring reliable and secure connections. It utilizes WAGO’s innovative CAGE CLAMP® connection technology, ensuring easy and vibration-proof connections. The terminal strip is designed for screw or similar mounting, making it versatile for different panel configurations. It supports a wide range of conductor sizes, from 0.08 to 1.5 mm², and is rated for a voltage of 400V and a current of 18A, making it suitable for a variety of power and signal transmission applications. Its compact design and robust construction ensure long-lasting performance in demanding environments.
WAGO 260106 6-pole Terminal Strip Specifications:
- Rated Voltage (III / 3): 400 V
- Rated Impulse Voltage (III / 3): 6 kV
- Rated Current: 18 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Fine-Stranded Conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Number of Poles: 6
- Total Number of Connection Points: 12
- Total Number of Potentials: 6
- Number of Levels: 1
- Type of Wiring: Side-entry wiring
- Width: 44.5 mm / 1.752 inch
- Height from the Surface: 17 mm / 0.669 inch
- Depth: 25 mm / 0.984 inch
- Module Width: 5 mm / 0.197 inch
- Design: horizontal
- Mounting Type: Mounting flange
- Marking Level: Side marking
- Color: gray
- Fire Load: 0.219 MJ
- Weight: 10.7 g
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918598811
- Customs Tariff No.: 85369010000
