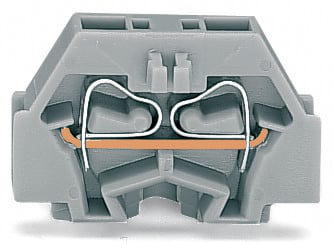

WAGO 260301 2-conductor terminal block
The WAGO 260-301 is a versatile 2-conductor terminal block suitable for a wide range of industrial applications. Designed with a fixing flange and a 3.2 mm fixing hole, it's ideal for screw or similar mounting types and is compatible with the 209-123 mounting carrier for DIN 35 rail systems. The CAGE CLAMP® connection technology ensures secure and reliable connections for solid and fine-stranded wires ranging from 0.08 to 1.5 mm² (28 to 16 AWG). With a rated voltage of 400V and a nominal current of 18A, this terminal block provides robust performance in various electrical circuits. Its horizontal design and side marking capability enhance usability and organization in control cabinets and electrical panels.
WAGO 260301 2-conductor terminal block Specifications:
- Fixing hole diameter: 3.2 mm
- Mounting carrier: 209-123
- Number of connection points: 2
- Number of potentials: 1
- Color: gray
- Pollution degree: 3
- Rated voltage EN: 400 V
- Rated surge voltage: 6 kV
- Nominal current: 18 A
- Connection technology: CAGE CLAMP®
- Solid wire sizes: 0.08 … 1.5 mm² / 28 … 16 AWG
- Fine-stranded wire sizes: 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 in
- Type of wiring: Side-entry wiring
- Design: horizontal
- Marking level: Side marking
- Fire load: 0.032 MJ
- Weight: 1.602 g
- Width: 5 mm / 0.197 in
- Height from surface: 17 mm / 0.669 in
- Length: 25 mm / 0.984 in
