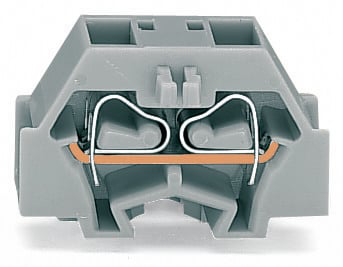

WAGO 260333 4-conductor terminal block
The WAGO 260-333 is a versatile 4-conductor terminal block suitable for a wide range of industrial applications. Designed with a fixing flange, it allows for secure mounting via screw or similar methods. It's also compatible with the 209-123 mounting carrier, enabling easy installation on DIN 35 rail systems. The terminal block utilizes CAGE CLAMP® connection technology, ensuring reliable and vibration-resistant connections. It's ideal for applications requiring robust and space-saving terminal solutions in control cabinets and machinery.
WAGO 260333 4-conductor terminal block Specifications:
- Total number of connection points: 4
- Total number of potentials: 1
- Color: light gray
- Pollution degree (1): 3
- Rated voltage EN (1) [V]: 400
- Rated surge voltage (1) [kV]: 6
- Nominal current [A]: 18
- Connection technology (1): CAGE CLAMP®
- Cross section from (1) [mm²]: 0.08
- Cross section up to (1) [mm²]: 1.5
- Cross section from (1) [AWG]: 28
- Cross section up to (1) [AWG]: 16
- Stripped length from (1) [mm]: 8
- Stripped length up to (1) [mm]: 9
- Stripped length (1) [in]: 0.33
- Type of wiring: Side-entry wiring
- Design: horizontal
- Marking level: Side marking
- Fire load [MJ]: 0.043
- Weight [g]: 2.53
- Width [mm]: 8
- Width [in]: 0.315
- Height [mm]: 17
- Height [in]: 0.669
- Length [mm]: 25
- Length [in]: 0.984
Buy the 260-333 WAGO 4-conductor terminal block | myMectronic
Purchase the WAGO 260-333 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 260333?
You can click on the BUY or RFQ button to purchase 260333 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 260333?
You can download the 260333 datasheet or visit the WAGO website for support.
Who is the manufacturer of 260333?
WAGO
