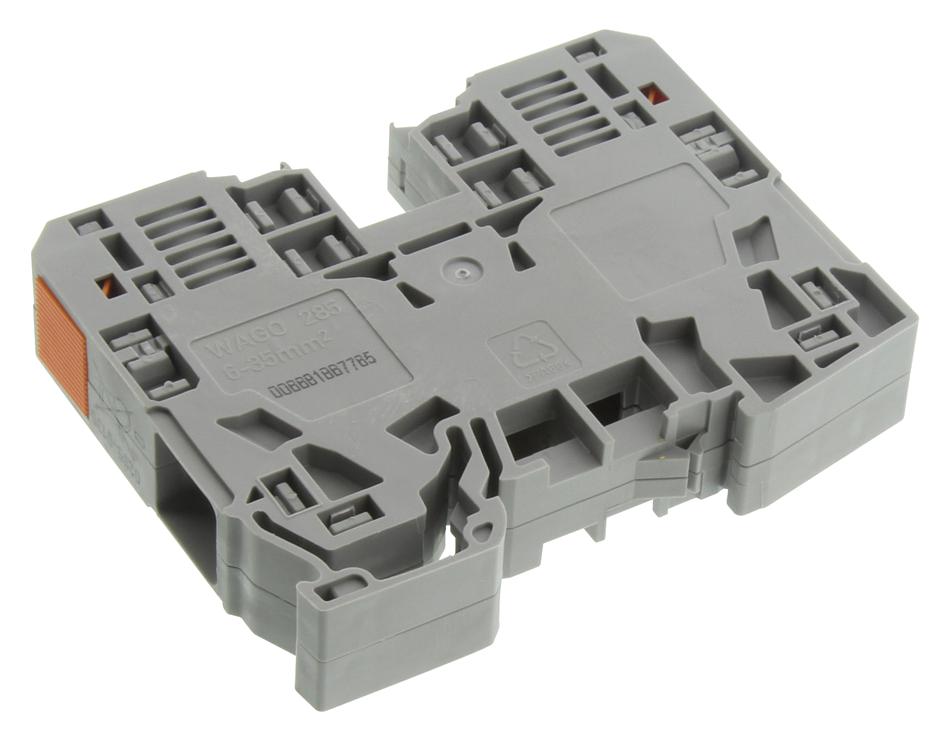

WAGO 285135 2-conductor through terminal block
The WAGO 285-135 is a robust and reliable 2-conductor through terminal block ideal for use in various industrial automation and power distribution systems. Its POWER CAGE CLAMP connection technology ensures a gas-tight connection and simplifies conductor termination. Designed for DIN rail mounting (35 x 15), this terminal block offers a secure and organized solution for connecting multiple conductors. The block is suitable for applications requiring high current carrying capacity and reliable performance in demanding environments.
WAGO 285135 2-conductor through terminal block Specifications:
- Rated voltage (III / 3): 1000 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 125 A
- Connection technology: POWER CAGE CLAMP
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 6 … 35 mm² / 10 … 2 AWG
- Stranded conductor: 6 … 35 mm² / 10 … 2 AWG
- Fine-stranded conductor: 6 … 35 mm² / 10 … 2 AWG
- Strip length: 25 mm / 0.98 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Side-entry wiring
- Width: 16 mm / 0.63 inch
- Height from upper-edge of DIN-35 rail: 63 mm / 2.48 inch
- Depth: 86 mm / 3.386 inch
- Design: horizontal type
- Type of mounting: DIN-35 rail
- Marking level: Side marking
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 1.246 MJ
- Weight: 79.3 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: PL
- GTIN: 4045454507381
- Customs Tariff No.: 85369010000
