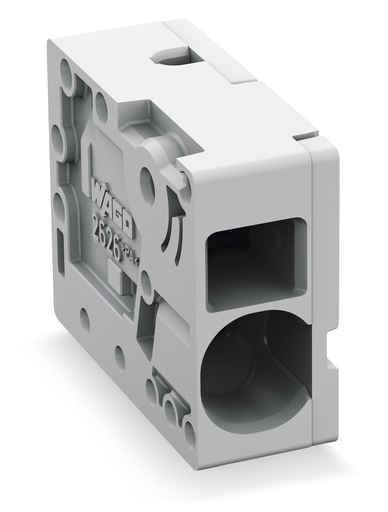

WAGO 26261101 1-pole PCB Terminal Block
The WAGO 2626-1101 is a robust and reliable 1-pole PCB terminal block ideal for various industrial applications. Its Push-in CAGE CLAMP® connection simplifies conductor termination, while its compact design and multiple approvals (UL, CSA, IEC) ensure compatibility and safety. This terminal block is suitable for panel feedthrough applications and offers efficient and secure connections for electrical circuits.
Authorized Distributors
Source:Master Electronics
Part No:2626-1101
Stock:150
Inv Date:06-04-2026
Price: Unit price: $2.01
Buy/RFQ:
Source:Onlinecomponents.com
Part No:2626-1101
Stock:150
Inv Date:06-04-2026
Price: Unit price: $2.01
Buy/RFQ:
WAGO 26261101 1-pole PCB Terminal Block Specifications:
- Rated surge voltage (III/3): 8 kV
- Rated voltage (III/2): 1000 V
- Nominal voltage (II/2): 1000 V
- Rated current: 48 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 38 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 38 A
- Rated voltage CSA (Use Group C): 1000 V
- Rated current CSA (Use Group C): 38 A
- Connection technology: Push-in CAGE CLAMP®
- Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 6 mm²
- Pin spacing: 7.5 mm
- Width: 9.3 mm
- Height: 23.6 mm
- Depth: 24.2 mm
- Solder pin length: 4 mm
- Material: Polyamide (PA66)
- Flammability class per UL94: V0
- Weight: 4.6 g
- Limit temperature range: -60 … +105 °C
- Customs tariff number: 85369010000
- GTIN: 4055143587068
- Country of origin: DE
Buy the 2626-1101 WAGO 1-pole PCB Terminal Block | myMectronic
Purchase the WAGO 2626-1101 PCB terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 26261101?
You can click on the BUY or RFQ button to purchase 26261101 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 26261101?
You can download the 26261101 datasheet or visit the WAGO website for support.
Who is the manufacturer of 26261101?
WAGO
