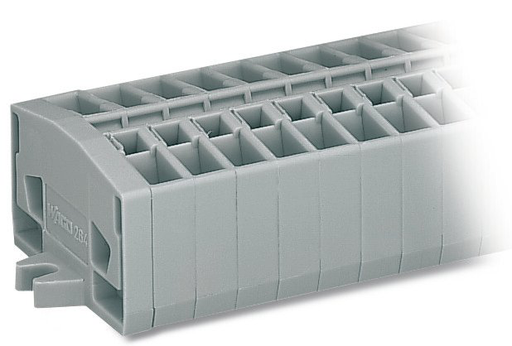

WAGO 264102 2-Conductor Terminal Strip
The WAGO 264-102 is a 2-pole terminal strip designed for secure and efficient electrical connections. Featuring WAGO’s innovative CAGE CLAMP® connection technology, it offers reliable clamping force and easy handling. This terminal strip is suitable for screw or similar mounting types and is ideal for a variety of industrial applications, including power distribution, control circuits, and automation systems. Its compact design and robust construction ensure long-lasting performance and ease of integration into existing systems. The 264-102 is a versatile solution for connecting multiple conductors in a safe and organized manner.
WAGO 264102 2-Conductor Terminal Strip Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 2
- Total number of connection points: 4
- Total number of potentials: 2
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 28 mm / 1.102 inch
- Height from the surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Module width: 6 mm / 0.236 inch
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Center marking
- Color: gray
- Fire load: 0.211 MJ
- Weight: 9.5 g
- Product Group: 9 (Std. Chassis Mt. Blocks)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918425810
- Customs Tariff No.: 85369010000
