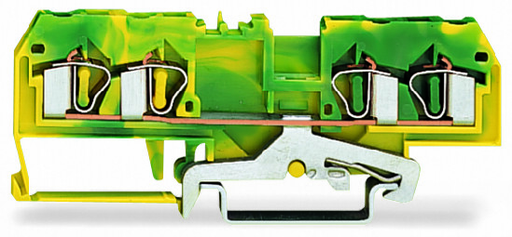

WAGO 281657 4-Conductor Earth Terminal Block
The WAGO 281-657 is a rail-mounted terminal block specifically designed for earth connections. It features a front-entry design, facilitating easy wiring and maintenance. The CAGE CLAMP connection technology ensures a secure and vibration-resistant connection, making it suitable for demanding industrial environments. This terminal block is commonly used in electrical distribution panels, control cabinets, and machinery for providing a reliable earth connection for multiple conductors. Its robust construction and reliable connection method contribute to the overall safety and performance of electrical systems.
WAGO 281657 4-Conductor Earth Terminal Block Specifications:
- Product Description: 4-Conductor Earth Terminal Block; Centre Marking; for DIN 35 rail; Front-Entry; CAGE CLAMP® Connection; Horizontal Type
- Packing Unit: 50 pieces
- Cross Section From [mm²]: 0,08 mm²
- Cross Section To [mm²]: 4 mm²
- Cross Section From [AWG]: 28 AWG
- Cross Section To [AWG]: 12 AWG
- Connection Method: CAGE CLAMP® Connection
- Weight: 17,298 g
- Color: green-yellow
- Wiring Type: Front-Entry
- No. of Connection Points: 4
- No. of Potentials: 1
- Height: 29 mm
- Height (in): 1,14 in
- Width: 6 mm
- Width (in): 0,236 in
- Depth: 86 mm
- Depth (in): 3,39 in
- Strip Length From: 9 mm
- Strip Length To: 10 mm
- Strip Length (in): 0,37 in
- Admission Office: ABS, AEX, BBJ, BV, CCA, CSA, cURus-EX, DEMKO, Dep.MaE, DNV, GL, KEMA, KR, LR, NEMKO, PRS, RMR, UR
- Approval No.: 05-HG476175/1-PDA, E185892, B/12/700/03, 07436/C0, 07436/Co, NL5591/1, 154112-1505034, E185892, 113344, CS4866N, E7570, 17295-00HH, 2076376.01, HMB05880-EL001, 91/20112(E5), L92062, TE/1718/880590/08, 11130002, E45172
- Voltage [V]: 250, 600, 500/800
- Current [A]: 6,3, 10/35, 25
- Cross Section [mm²]: 4,0, 0,08-4
Buy the 281-657 WAGO 4-Conductor Earth Terminal Block | myMectronic
Purchase the WAGO 281-657 terminal block securely and conveniently online.
Buy Now
