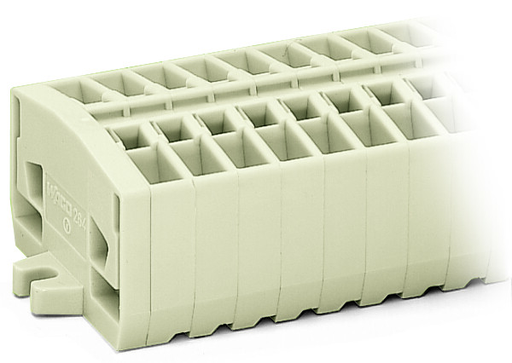

WAGO 264134 2-Conductor Terminal Strip
The WAGO 264-134 terminal strip is a robust and reliable solution for electrical connections in hazardous environments. Designed with fixing flanges for secure mounting, it's ideal for screw or similar mounting types and specifically suitable for Ex e II applications. This 4-pole terminal strip offers a combination of safety and functionality, making it a valuable component in industrial automation, power distribution, and control systems. Its CAGE CLAMP® connection technology ensures secure and reliable connections, while its compact design optimizes space utilization in control cabinets.
WAGO 264134 2-Conductor Terminal Strip Specifications:
- No. of Poles: 4
- Total number of connection points: 8
- Total number of potentials: 4
- Color: light gray
- Rated voltage EN (1) [V]: 690 [V]
- Nominal current [A]: 23 [A]
- Connection technology (1): CAGE CLAMP®
- Cross section from (1) [mm²]: 0.5 [mm²]
- Cross section up to (1) [mm²]: 2.5 [mm²]
- Cross section from (1) [AWG]: 20 [AWG]
- Cross section up to (1) [AWG]: 12 [AWG]
- Stripped length from (1) [mm]: 8 [mm]
- Stripped length up to (1) [mm]: 9 [mm]
- Stripped length (1) [in]: 0.33 [in]
- Type of wiring: Front-entry wiring
- Design: horizontal
- Marking level: Center marking
- Fire load [MJ]: 0.351 [MJ]
- Weight [g]: 17.065 [g]
- Width [mm]: 40 [mm]
- Width [in]: 1.575 [in]
- Height [mm]: 22.1 [mm]
- Height [in]: 0.87 [in]
- Length [mm]: 32 [mm]
- Length [in]: 1.26 [in]
- EAN: 4044918423076
- Content: 1
- Order amount: 100
Buy the 264-134 WAGO 2-Conductor Terminal Strip | myMectronic
Purchase the WAGO 264-134 terminal strip securely and efficiently online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 264134?
You can click on the BUY or RFQ button to purchase 264134 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 264134?
You can download the 264134 datasheet or visit the WAGO website for support.
Who is the manufacturer of 264134?
WAGO
