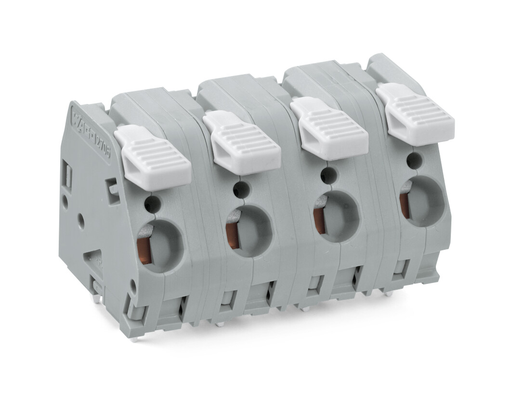

WAGO 2706304 4-pole Lever Terminal Block
The WAGO 2706-304 is a high-current terminal strip designed for PCB applications. Its lever-actuated CAGE CLAMP® mechanism allows for tool-free opening and closing, simplifying termination processes. The design incorporates two solder pins per contact, ensuring high mechanical stability. This terminal block is ideal for industrial automation, power distribution, and control systems where reliable and efficient connections are critical. It supports a wide range of conductor sizes and offers excellent electrical ratings, making it a versatile solution for various electrical engineering projects.
WAGO 2706304 4-pole Lever Terminal Block Specifications:
- Rated voltage (III / 3): 1000 V
- Rated impulse voltage (III / 3): 8 kV
- Rated voltage (III / 2): 1000 V
- Rated impulse voltage (III / 2): 8 kV
- Rated voltage (II / 2): 1000 V
- Rated impulse voltage (II / 2): 8 kV
- Rated current: 41 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 30 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 30 A
- Connection technology: CAGE CLAMP®
- Actuation type: Lever
- Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.5 … 6 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.5 … 6 mm²
- Strip length: 11 … 12 mm / 0.43 … 0.47 inch
- Conductor entry angle to the PCB: 30 °
- No. of poles: 4
- Total number of connection points: 4
- Total number of potentials: 4
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 12.5 mm / 0.492 inch
- Width: 45 mm / 1.772 inch
- Height: 30 mm / 1.181 inch
- Height from the surface: 25.5 mm / 1.004 inch
- Depth: 26 mm / 1.024 inch
- Solder pin length: 4.5 mm
- Solder pin dimensions: 1 x 1.4 mm
- Drilled hole diameter (tolerance): 1.8 mm (- … +0.1)
- PCB contact: THT
- Solder pin arrangement: over the entire terminal strip, in line
- Number of solder pins per potential: 2
- Color: gray
- Material group: I
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.548 MJ
- Weight: 26.5 g
- Limit temperature range: -60 … +105 °C
- Product Group: 4 (Printed Circuit)
- Packaging type: BOX
- Country of origin: PL
- GTIN: 4050821093466
- Customs Tariff No.: 85369010000
