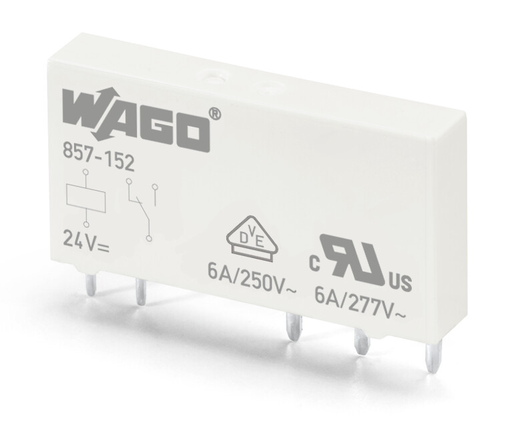

WAGO 857152 Basic Relay Module
The WAGO 857-152 basic relay module provides reliable switching capabilities for a wide range of industrial applications. With a nominal input voltage of 24VDC and a 6A continuous current rating, it's suitable for controlling various loads. The module's single changeover contact allows for flexible circuit configurations. Proper protective circuitry is recommended for inductive loads to protect the relay coils and contacts. For gold-plated relays, exceeding 30VDC and 50mA switching power can damage the gold layer, reducing service life. This module is designed for pluggable installation and offers a robust solution for automation and control systems.
WAGO 857152 Basic Relay Module Specifications:
- Nominal input voltage UN: DC 24 V
- Number of changeover/switchover contacts: 1
- Contact material (relay): AgSnO2
- Limiting continuous current: 6 A
- Max. make current (resistive): (AC) 20 A / 0.02 s
- Max. switching voltage: AC 250 V
- Max. switching power (resistive): AC 1500 VA
- Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
- Recommended minimum load: 10 V / 10 mA; 24 V / 1 mA
- Pull-in time (typ.): 8 ms
- Drop-out time (typ.): 4 ms
- Bounce time (typ.): 3.5 ms
- Electrical life (N.O.; resistive load; 23 °C): 50 x 10 switching operations
- Mechanical life: 5 x 10 switching operations
- Max. switching load with load/without load: 6 min / 180 min
- Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
- Dielectric strength open contact (AC, 1 min): 1 kVrms
- Protection class: IP20
- Width: 5 mm
- Height from the surface: 15 mm
- Depth: 28 mm
- Surrounding air (operating) temperature at UN: -40 … 85 °C
- Surrounding air (storage) temperature: -40 … 85 °C
- Standards and specifications: EN 61810-1, EN 61373; VDE, UR
- Product Group: 6 (Interface Electronics)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454550998
- Customs Tariff No.: 85364900990
- UL-Approvals: UL 508 E340707
