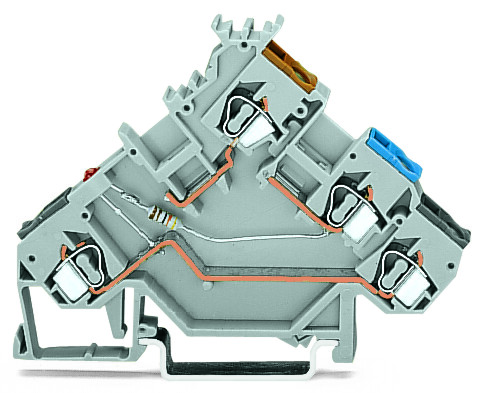

WAGO 280560281434 3-conductor sensor terminal block
The WAGO 280-560/281-434 terminal block is a versatile solution for connecting sensors in industrial applications. Designed for PNP (high-side) switching sensors, it incorporates colored conductor entries for easy identification and organization. The CAGE CLAMP® spring pressure connection technology ensures a secure and vibration-resistant connection. For aluminum conductors, the use of WAGO “Alu-Plus” Contact Paste is recommended to prevent oxidation and corrosion, allowing for safe and reliable operation. This terminal block is ideal for automation, control, and monitoring systems where reliable sensor connections are critical.
WAGO 280560281434 3-conductor sensor terminal block Specifications:
- Voltage type: DC
- Nominal voltage: 24 V
- Rated current: 20 A
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0,08 … 2,5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0,08 … 2,5 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 4
- Total number of potentials: 3
- Number of levels: 3
- Wiring type: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-rail: 55,5 mm / 2.185 inch
- Depth: 80 mm / 3.15 inch
- Design: angled
- Mounting type: DIN-35 rail
- Marking level: Center marking
- Insulation material: Polyamide 66 (PA 66)
- Fire load: 0.174 MJ
- Weight: 10.5 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454299231
- Customs tariff number: 85369010000
- LED power consumption: 4.8 mA
