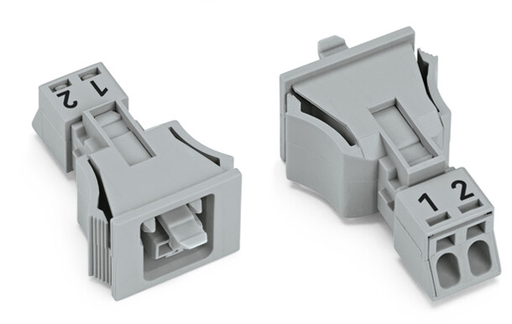

WAGO 890742 2-pole Snap-in Socket
The WAGO 890-742 snap-in socket provides a robust and efficient connection solution for a wide range of industrial applications. Its push-in CAGE CLAMP® spring pressure connection technology simplifies installation, allowing for solid conductors to be easily inserted. The integrated mismating protection ensures secure connections, preventing accidental disconnections. With a compact design and the ability to be clearly printed and color-coded, the 890-742 offers flexibility and organization in electrical systems. It is suitable for lighting fixtures, devices, and other easily accessible areas, complying with IP40 standards when assembled.
WAGO 890742 2-pole Snap-in Socket Specifications:
- Color: gray
- Pole No.: 2
- Total number of connection points: 2
- Total number of potentials: 2
- Conductor entry direction to mating direction: 0 °
- Pin spacing: 4.4 mm
- Width: 19.8 mm
- Height: 16 mm
- Depth: 39.85 mm
- Coding: B
- Mating force of a plug-in connection: approx. 20 … 70 N
- Retention force of a plug-in connection: Locked: > 80 N
- Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N
- Housing sheet thickness: 0.5 … 2 mm
- Mounting type: Snap-in
- Protection type: IP40
- Potential marking: 1 2
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross-section: 1.5 mm²
- Solid conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
- Solid conductor; push-in termination: 0.75 … 1.5 mm² / 20 … 16 AWG
- Stranded conductor: 0.25 … 1 mm² / 22 … 18 AWG
- Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
- Fine-stranded conductor; with uninsulated ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 0.75 mm² / 20 AWG
- Strip length: 9 mm
- Nominal voltage (III/3): 250 V
- Rated surge voltage (III/3): 4 kV
- Rated current: 16 A
- Rated voltage UL: 600 V
- Rated current UL: 14 A
- Insulation material: Polyamide 66 (PA66)
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Copper or copper alloy (surface-treated)
- Fire load: 0.107 MJ
- Weight: 4.5 g
- Processing temperature: -5 … +40 °C
- Continuous operating temperature: -35 … +85 °C
