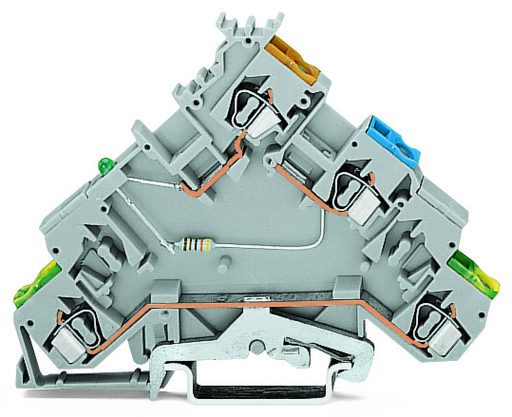

WAGO 280566281496 3-conductor sensor supply terminal block
The WAGO 280-566/281-496 terminal block provides a reliable connection for 3-conductor sensor power supply applications. Designed for NPN (low-side) switching sensors, this terminal block utilizes WAGO’s CAGE CLAMP® spring pressure connection technology for secure and efficient connections. It is suitable for both copper and aluminum conductors, with specific preparation required for aluminum conductors to prevent corrosion and ensure optimal performance. The terminal block is mounted on a DIN-35 rail and features a gray polyamide 66 housing, making it suitable for various industrial environments.
WAGO 280566281496 3-conductor sensor supply terminal block Specifications:
- Number of conductors: 3
- Voltage type: DC
- Nominal voltage: 24 V
- Rated current: 20 A
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper, Aluminum
- Solid conductor size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 2
- Total number of potentials: 2
- Number of levels: 3
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 55.5 mm / 2.185 inch
- Depth: 80 mm / 3.15 inch
- Insulating material: Polyamide 66 (PA 66)
- Color: gray
- Mounting type: DIN-35 rail
- LED power consumption: 4.8mA
- Aluminum conductor preparation: Clean with blade and apply 'Alu-Plus' Contact Paste
- Nominal current for aluminum conductors (2.5 mm²):: 16 A
- Nominal current for aluminum conductors (4 mm²):: 22 A
