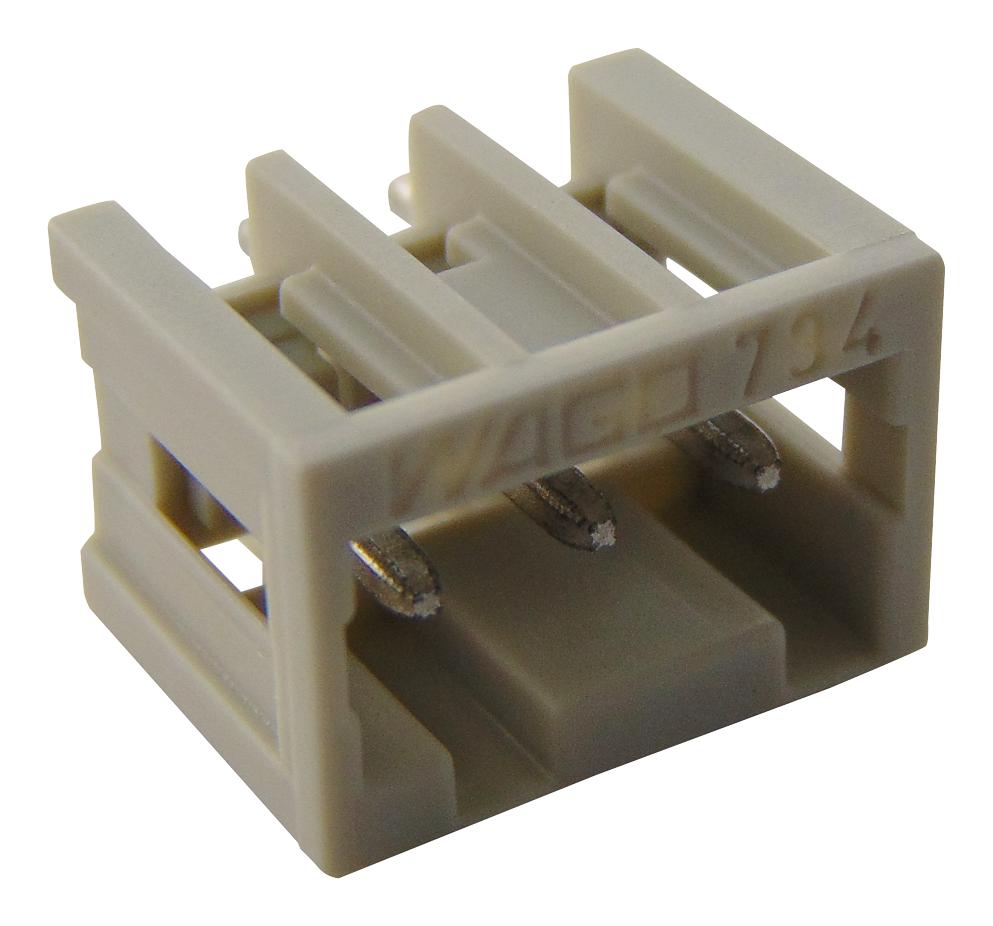

WAGO 734133 3-pole THT Header
The WAGO 734-133 is a 3-pole THT (Through-Hole Technology) male header designed for robust and reliable PCB connections. It features a 3.5mm pin spacing and straight solder pins, facilitating easy integration into printed circuit boards. A key feature is the 100% mismating protection, ensuring secure connections and preventing errors. This header is suitable for a wide range of industrial applications, including automation, control systems, and power distribution, where reliable and secure connections are paramount. It is designed for horizontal or vertical PCB mounting and is part of WAGO's Multi Connection System (MCS).
WAGO 734133 3-pole THT Header Specifications:
- Pin spacing: 3.5 mm
- Number of poles: 3
- Total number of potentials: 3
- Solder pin length: 4.5 mm
- Solder pin dimensions: 1 x 1 mm
- Rated voltage (III / 3): 160 V
- Rated impulse voltage (III / 3): 2.5 kV
- Rated voltage (II / 2): 320 V
- Rated current: 10 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Drilled hole diameter (tolerance): 1.4 mm (- … +0.1)
- Width: 12.9 mm
- Height: 14.8 mm
- Height from the surface: 10.3 mm
- Depth: 8.5 mm
- Material group: I
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.014 MJ
- Weight: 0.8 g
- Limit temperature range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918847544
- Customs Tariff No.: 85366990990
Buy the 734-133 WAGO 3-pole THT Header | myMectronic
Purchase the WAGO 734-133 THT header securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 734133?
You can click on the BUY or RFQ button to purchase 734133 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 734133?
You can download the 734133 datasheet or visit the WAGO website for support.
Who is the manufacturer of 734133?
WAGO
