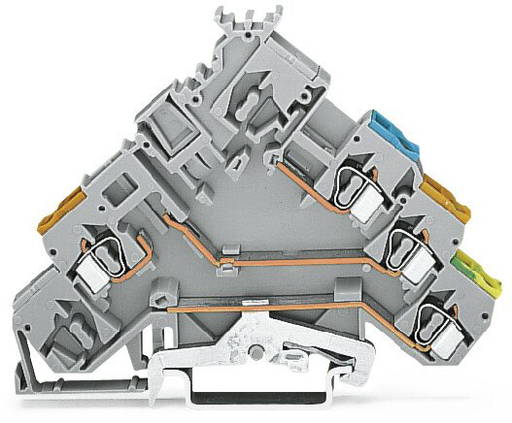

WAGO 280575 3-Conductor Actuator Supply Terminal Block
The WAGO 280-575 terminal block is a versatile solution for connecting actuators in industrial automation and control systems. Its 3-conductor design, combined with features like a ground contact and colored conductor entries, simplifies wiring and enhances organization. The CAGE CLAMP® connection technology ensures a secure and vibration-resistant connection, while the compatibility with aluminum conductors (when used with “Alu-Plus” Contact Paste) expands its application range. This terminal block is suitable for a wide range of applications, including motor control, valve actuation, and sensor integration.
WAGO 280575 3-Conductor Actuator Supply Terminal Block Specifications:
- Nominal Voltage (III/3): 125 V
- Rated Current: 5 A
- Rated Voltage (III/3) 2: 250 V
- Rated Current 2: 6.3 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper, Aluminum
- Solid Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Total Number of Connection Points: 4
- Total Number of Potentials: 4
- Number of Levels: 4
- Wiring Type: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from Upper-Edge of DIN-Rail: 63.5 mm / 2.5 inch
- Depth: 90.5 mm / 3.563 inch
- Design: angled
- Mounting Type: DIN-35 rail
- Marking Level: Center marking
- Insulation Material: Polyamide 66 (PA 66)
- Fire Load: 0.232 MJ
- Weight: 17.5 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4045454093761
- Customs Tariff Number: 85369010000
Buy the 280-575 WAGO 3-Conductor Actuator Supply Terminal Block | myMectronic
Purchase the WAGO 280-575 terminal block securely online for your industrial automation needs.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 280575?
You can click on the BUY or RFQ button to purchase 280575 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 280575?
You can download the 280575 datasheet or visit the WAGO website for support.
Who is the manufacturer of 280575?
WAGO
