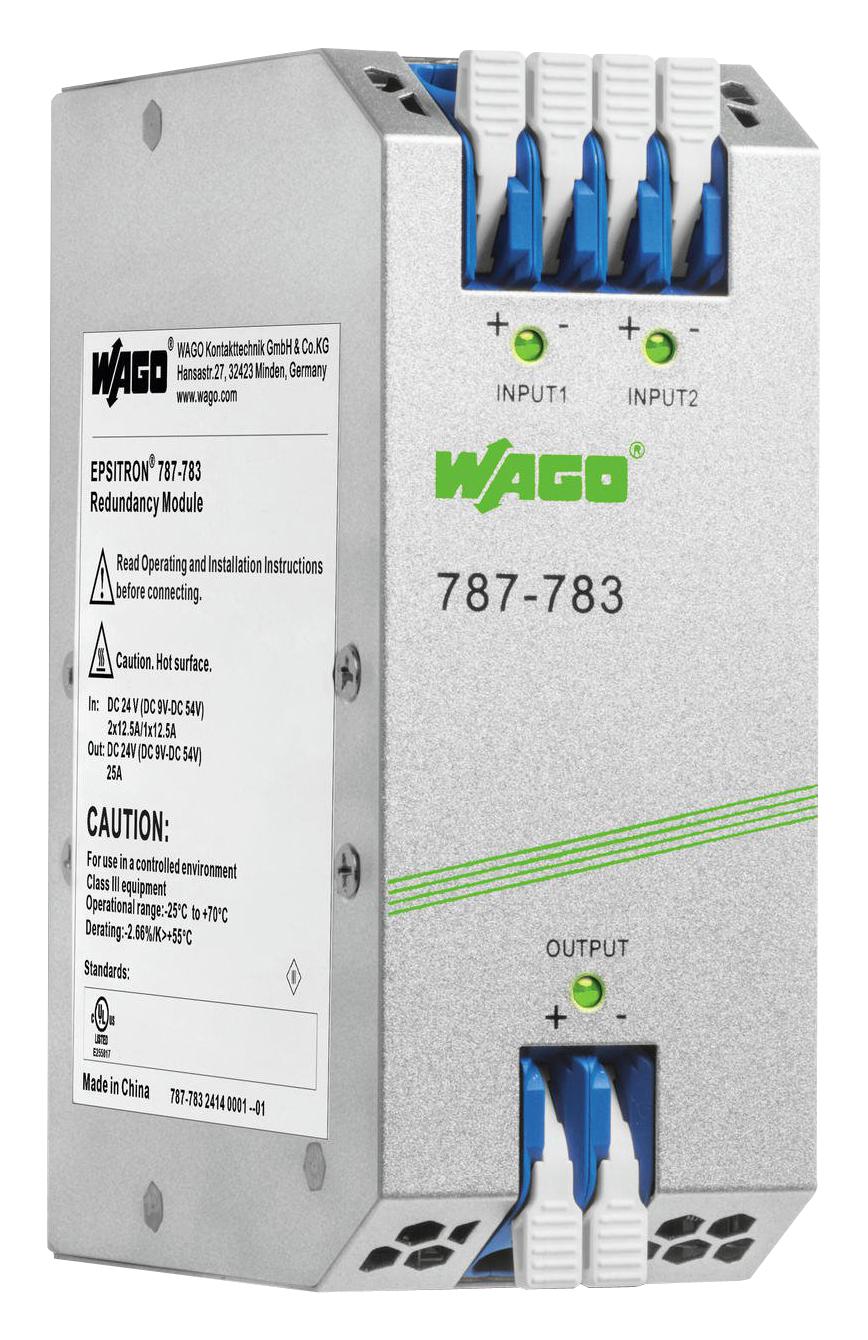

WAGO 787783000040 Redundancy Module
The WAGO Redundancy Module provides a reliable solution for dual power inputs, enabling fail-safe operation with LED indicators for voltage monitoring. Designed for industrial power supply systems, it supports input voltages from 9V to 54V DC and delivers a maximum output power of 600W at 25A current. Its compact DIN-35 rail mounting facilitates easy installation in control cabinets. Certified for safety standards including UL, ATEX, IEC Ex, and CE, this module ensures safe and efficient redundant power operation in critical automation setups. Suitable for applications requiring high availability and consistent power supply.
WAGO 787783000040 Redundancy Module Specifications:
- Input Voltage Range: 2xDC 9...54V
- Input Current: 12.5A per path
- Nominal Input Voltage: DC 24V
- Output Voltage Range: DC 9V...54V (U, - voltage drop)
- Nominal Output Voltage: DC 24V
- Output Current: 25A
- Output Power (max.): <1350W
- Voltage Drop: 0.8V (Input/output)
- Protection Class: IP20
- Operating Temperature: -25...70°C
- Weight: 470g
- Mounting: DIN-35 rail (EN 60715)
- Standards and Certifications: CE, UL 508, ATEX, IECEx
- Connection Technology: Push-in Cage Clamp, 0.5...6 mm² / 20...10 AWG
- Expected MTBF: >10 million hours
Buy the Buy WAGO Redundancy Module Item number 787-783/000-040 Online
Secure your automation projects with the WAGO Redundancy Module, supporting dual DC inputs from 9V to 54V and delivering up to 25A power output. Featuring LED indicators for voltage monitoring and certified for safety standards including UL, ATEX, IEC Ex, and CE, this module ensures continuous, fail-safe power supply in critical environments. Its robust design mounts on DIN-35 rails for easy integration into control cabinets. Improve system reliability and minimize downtime by purchasing this high-performance, reliable power redundancy device online today.
Order your WAGO Series787-783/000-040 Redundancy Module today and enhance the fail-safe capabilities of your power supply systems.
Frequently Asked Questions
Where can I buy WAGO 787783000040?
You can click on the BUY or RFQ button to purchase 787783000040 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 787783000040?
You can download the 787783000040 datasheet or visit the WAGO website for support.
Who is the manufacturer of 787783000040?
WAGO
