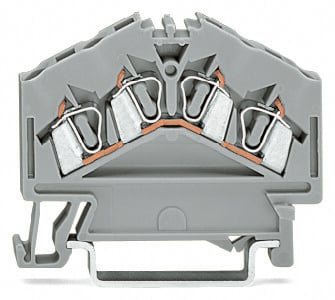

WAGO 280646 4-conductor Terminal Block
The WAGO 280-646 is a 4-conductor through terminal block designed for use in various industrial applications, particularly those requiring DIN-rail mounting. It features WAGO’s CAGE CLAMP® spring pressure connection technology, ensuring reliable and vibration-resistant connections. The terminal block is suitable for solid aluminum conductors when used with WAGO “Alu-Plus” Contact Paste, which prevents oxidation and corrosion. It is rated for 800V and 24A, making it suitable for a wide range of electrical circuits. Proper conductor preparation and adherence to current derating guidelines for aluminum conductors are essential for safe and reliable operation.
WAGO 280646 4-conductor Terminal Block Specifications:
- Rated Voltage: 800 V
- Rated Impulse Voltage: 8 kV
- Rated Current: 24 A
- Connection Technology: CAGE CLAMP®
- Connectable Conductor Materials: Copper, Aluminum
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Number of Connection Points: 4
- Number of Potentials: 1
- Mounting Type: DIN-35 rail
- Material: Polyamide 66 (PA 66)
- Width: 5 mm / 0.197 inch
- Height from Rail: 36.5 mm / 1.437 inch
- Depth: 50.5 mm / 1.988 inch
- Fire Load: 0.129 MJ
- Weight: 7.4 g
- Aluminum Conductor Current (2.5 mm²): 16 A
- Aluminum Conductor Current (4 mm²): 22 A
Buy the 280-646 WAGO 4-conductor Terminal Block | myMectronic
Purchase the WAGO 280-646 terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 280646?
You can click on the BUY or RFQ button to purchase 280646 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 280646?
You can download the 280646 datasheet or visit the WAGO website for support.
Who is the manufacturer of 280646?
WAGO
