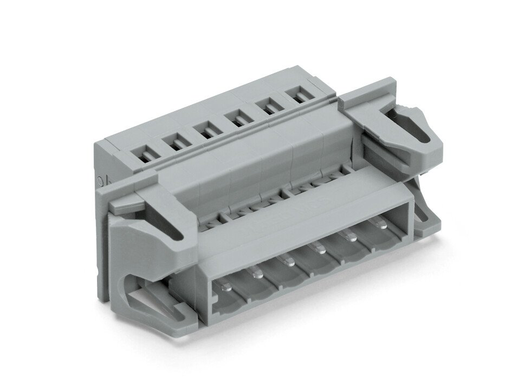

WAGO 231616114000 16 Pole Male Connector
The WAGO 231-616/114-000 is a robust 16-pole male connector engineered for reliable connections in diverse industrial settings. Utilizing WAGO’s innovative CAGE CLAMP technology, it simplifies both pre-assembly and on-unit wiring, accommodating a wide range of conductor types. This connector is designed for wire-to-wire and board-to-wire connections, and its snap-in flange allows for flexible panel or through-panel mounting. It is suitable for applications requiring secure and efficient power distribution and signal transmission, and is compliant with relevant safety standards.
WAGO 231616114000 16 Pole Male Connector Specifications:
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 15 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 2.5 mm²
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 16
- Total number of connection points: 16
- Total number of potentials: 16
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 5 mm / 0.197 inch
- Width: 101 mm / 3.976 inch
- Height: 17.5 mm / 0.689 inch
- Depth: 27.5 mm / 1.083 inch
- Gehäuseblechstärke: 0.5 … 2.5 mm / 0.02 … 0.098 inch
- Mounting type: Snap-in
- Contact type (pluggable connector): Male connector/plug
- Color: gray
- Flammability class per UL94: V0
- Contact material: Electrolytic copper (ECu)
- Contact plating: tin-plated
- Fire load: 0.483 MJ
- Weight: 26.1 g
- Limit temperature range: -60 … +100 °C
