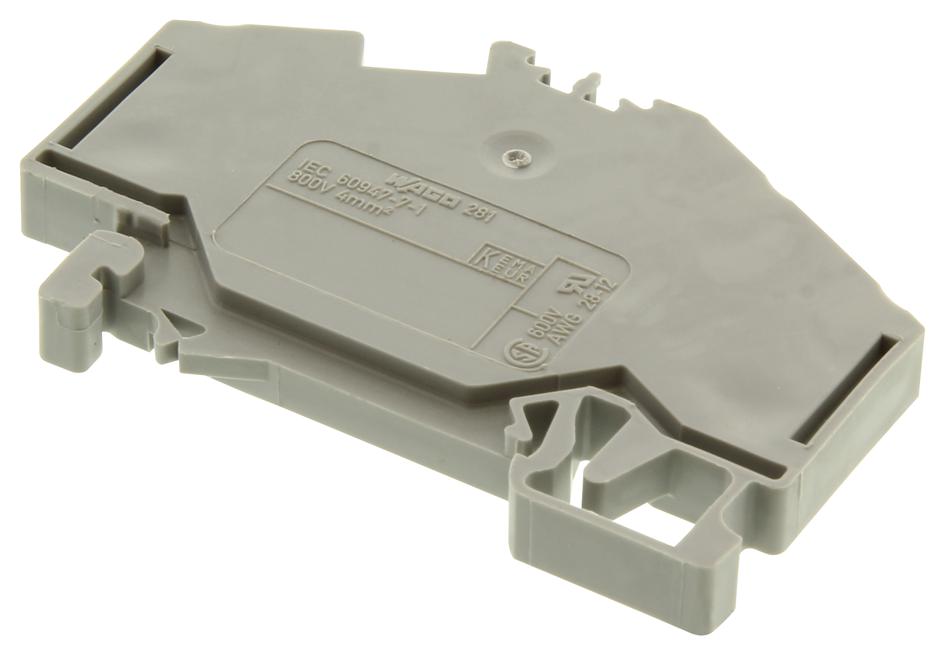

WAGO 281631 3-Conductor Terminal Block
The WAGO 281-631 is a versatile rail-mounted terminal block designed for efficient and secure electrical connections. Its cage clamp connection technology ensures a reliable and vibration-resistant termination of conductors, while the angled entry simplifies wiring in confined spaces. Suitable for a wide range of industrial applications including power distribution, control circuits, and automation systems, the 281-631 offers a robust and space-saving solution for connecting multiple conductors. It is ideal for use in DIN 35 rail mounted enclosures.
WAGO 281631 3-Conductor Terminal Block Specifications:
- Product Description: 3-Conductor Through Terminal Block; Centre Marking; for DIN 35 rail; Front-Entry; Cage Clamp®Connection; Angled Type
- Packing Unit: 100 pieces
- Cross Section From mm²: 0.08
- Cross Section To mm²: 4.0
- Cross Section From AWG: 28
- Cross Section To AWG: 12
- Connection Method: Cage Clamp®Connection
- Measured Voltage EN: 800 V
- Measured Shock Voltage: 8 kV
- Pollution Degree: 3
- Current Intensity EN: 32 A
- Weight: 10.401 g
- Color: grey
- Wiring Type: Angled
- No. of Connection Points: 3
- No. of Potentials: 1
- Height: 37 mm
- Height in inches: 1.46
- Width: 6 mm
- Width in inches: 0.236
- Depth: 61.5 mm
- Depth in inches: 2.42
- Strip Length From: 9 mm
- Strip Length To: 10 mm
- Strip Length in inches: 0.37
- Admission Office ABS: 05-HG476175/1-PDA
- Approval No. BBJ: B/12/700/03
- Approval No. BV: 07436/Co
- Approval No. CCA: NL5591/1
- Approval No. CSA: 154112-1505034
- Voltage CSA: 600 V
- Current CSA: 25 A
- Cross Section CSA: 28-12 AWG
- Approval No. DEMKO: 75942
- Voltage DEMKO: 750 V
- Approval No. Dep.MaE: CS4866N
- Voltage Dep.MaE: 600 V
- Current Dep.MaE: 25 A
- Approval No. DNV: E7570
- Voltage DNV: 800 V
- Approval No. GL: 17295-00HH
- Approval No. KEMA: 2076376.01
- Approval No. KR: HMB05880-EL001
- Voltage KR: 500/800 V
- Current KR: 10/35 A
- Approval No. LR: 91/20112(E5)
- Voltage LR: 800 V
- Approval No. PRS: TE/1718/880590/08
- Approval No. RMR: 11130002
- Voltage RMR: 800 V
- Approval No. UR: E45172
- Voltage UR: 600 V
- Current UR: 20 A
- Cross Section UR: 28-12 AWG
