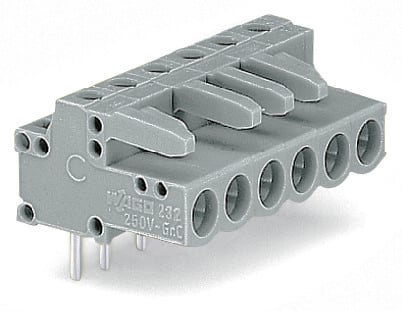

WAGO 232238 THT Female Header
The WAGO 232-238 THT female header is a versatile component for establishing robust electrical connections in PCB assemblies. Designed with angled solder pins and a 5mm pin spacing, it facilitates both horizontal and vertical mounting options. This header is ideal for board-to-board and board-to-wire connections, commonly found in industrial control systems, automation equipment, and power distribution panels. The touch-proof PCB outputs prioritize user safety, while coding fingers simplify identification. It is part of WAGO's Multi Connection System (MCS), ensuring reliable performance and ease of integration.
WAGO 232238 THT Female Header Specifications:
- Pin Spacing: 5 mm / 0.197 inch
- Width: 41.5 mm / 1.634 inch
- Height: 16.6 mm / 0.654 inch
- Height from the surface: 11.6 mm / 0.457 inch
- Depth: 18.25 mm / 0.719 inch
- Solder Pin Length: 5 mm
- Solder Pin Dimensions: 0.6 x 1 mm
- Drilled Hole Diameter: 1.3<br> (- … +0.1) mm
- Number of Poles: 8
- Total Number of Potentials: 8
- Number of Connection Types: 1
- Number of Levels: 1
- Rated Voltage (III / 3): 320 V
- Rated Impulse Voltage (III / 3): 4 kV
- Rated Voltage (III / 2): 320 V
- Rated Impulse Voltage (III / 2): 4 kV
- Rated Voltage (II / 2): 630 V
- Rated Impulse Voltage (II / 2): 4 kV
- Rated Current: 12 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 15 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage per UL 1977 (factory wiring only): 600 V
- Rated Current per UL 1977 (factory wiring only): 15 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 15 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Contact Type: Female connector/socket
- Connector Connection Type: for PCBs
- Mismating Protection: No
- Mating Direction to the PCB: 0 °
- Material Group: I
- Insulating Material: Polyamide 66 (PA 66)
- Flammability Class per UL94: V0
- Contact Material: Copper alloy
- Contact Plating: tin-plated
- Fire Load: 0.131 MJ
- Weight: 7.4 g
- Limit Temperature Range: -60 … +85 °C
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918579193
