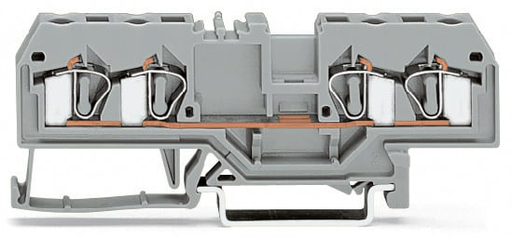

WAGO 281663 4-conductor Through Terminal Block
The WAGO 281-663 is a robust and reliable 4-conductor through terminal block suitable for a wide range of industrial applications. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, it offers a secure and space-saving solution for electrical connections. The CAGE CLAMP® spring pressure connection technology ensures a gas-tight connection and simplifies wiring. For aluminum conductors, the use of WAGO “Alu-Plus” Contact Paste is recommended to prevent oxidation and corrosion, ensuring long-term performance and reliability. This terminal block is ideal for control cabinets, power distribution, and automation systems.
WAGO 281663 4-conductor Through Terminal Block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 26 A
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper, Aluminum
- Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 9 … 10 mm / 0.35 … 0.39 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Width: 6 mm / 0.236 inch
- Height from upper-edge of DIN-35 rail: 29 mm / 1.142 inch
- Depth: 86 mm / 3.386 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Color: red
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.205 MJ
- Weight: 12.7 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918486552
- Customs Tariff No.: 85369010000
Buy the 281-663 WAGO 4-conductor Through Terminal Block | myMectronic
Purchase the WAGO 281-663 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 281663?
You can click on the BUY or RFQ button to purchase 281663 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 281663?
You can download the 281663 datasheet or visit the WAGO website for support.
Who is the manufacturer of 281663?
WAGO
