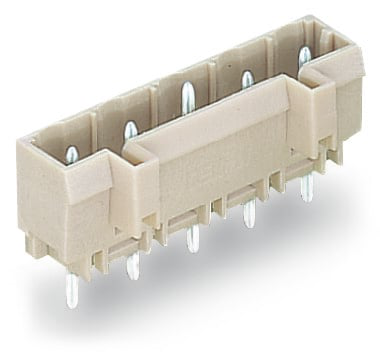

WAGO 721235001040 5-pole THT Header
The WAGO 721-235/001-040 is a robust 5-pole THT male header designed for reliable PCB connections. Its 1.0x1.0mm solder pins and straight configuration facilitate easy integration into various PCB designs. The header incorporates a preceding ground contact for enhanced safety and signal integrity. It is suitable for a wide range of industrial applications requiring secure and reliable connections, such as automation systems, control panels, and power distribution.
WAGO 721235001040 5-pole THT Header Specifications:
- Pin spacing: 7.5 mm
- Number of poles: 5
- Total number of potentials: 5
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated voltage (III / 2): 630 V
- Rated impulse voltage (III / 2): 6 kV
- Rated voltage (II / 2): 1000 V
- Rated impulse voltage (II / 2): 6 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Pin cross-section: 1 x 1 mm
- Solder pin length: 5 mm
- Solder pin dimensions: 1 x 1 mm
- Drilled hole diameter (tolerance): 1.4 mm
- Width: 38 mm
- Height: 17 mm
- Height from the surface: 12 mm
- Depth: 11.4 mm
- Material group: I
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.044 MJ
- Weight: 2.2 g
- Limit temperature range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: PL
- GTIN: 4044918869300
- Customs Tariff No.: 85366990990
