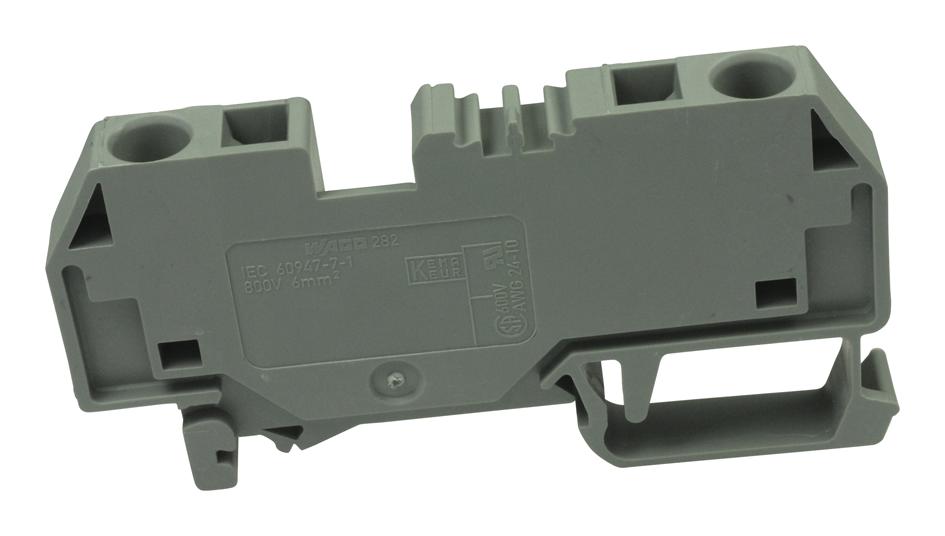

WAGO 282901 2-Conductor Through Terminal Block
The WAGO 282-901 is a robust and reliable 2-conductor through terminal block specifically engineered for use on DIN 35 rails. This terminal block provides a secure and organized connection point for electrical circuits in industrial automation, control panels, and power distribution systems. It supports a wide range of wire sizes, from 0.2 to 6 mm² (24-10 AWG), and is rated for voltages up to 800V and currents up to 41A. The integrated center marking simplifies identification and wiring processes, enhancing efficiency and reducing errors. Its compact dimensions (width 8mm, height 32.5mm, depth 74.5mm) make it suitable for space-constrained applications. The grey color provides a consistent aesthetic in electrical enclosures.
WAGO 282901 2-Conductor Through Terminal Block Specifications:
- Cross section1: 0.2 - 6 mm²
- Cross section2: 24 - 10 AWG
- Strip length: 12 - 13 mm
- Measured voltage: 800 V
- Measured shock voltage: 8 kV
- Pollution degree: 3
- Current intensity: 41 A
- Height: 32.5 mm
- Width: 8 mm
- Depth: 74.5 mm
- No. of connection Points: 2
- No. of potentials: 1
- COLOR: grau
- WEIGHT: 15.986 g
