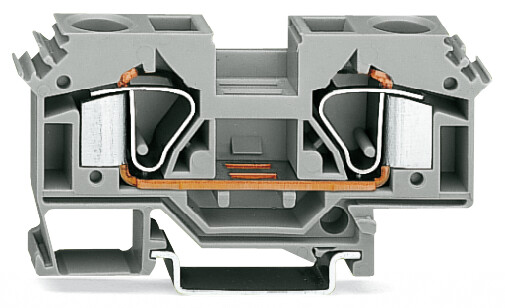

WAGO 283604 2-Conductor Terminal Block
The WAGO 283-604 is a 2-conductor terminal block designed for reliable connections in industrial applications. It utilizes WAGO's innovative CAGE CLAMP® connection technology, ensuring a secure and vibration-resistant termination. This terminal block is suitable for mounting on standard chassis and is ideal for control cabinets, power distribution systems, and automation equipment. It supports wire gauges from 28-14 AWG and offers a current intensity of 24A, making it suitable for a wide range of applications.
WAGO 283604 2-Conductor Terminal Block Specifications:
- Product Group: 9 (Std Chassis Mt Blocks)
- Cross Section mm²: 0.08 - 2.5 mm²
- Cross Section AWG: 28 - 14 AWG
- Connection Method: CAGE CLAMP® CONNECTION
- Measured Voltage EN: 500 V
- Measured Shock Voltage: 6 kV
- Pollution Degree: 3
- Current Intensity EN: 24 A
- Weight: 2.26 g
- Color: orange
- Wiring Type: Side-entry
- No. of Connection Points: 2
- No. of Potentials: 1
- Height: 18 mm
- Height in: 0.709 in
- Width: 6 mm
- Width in: 0.236 in
- Depth: 28 mm
- Depth in: 1.103 in
- Strip Length from: 8 mm
- Strip Length to: 9 mm
- Strip Length in: 0.33 in
Buy the 283-604 WAGO 2-Conductor Terminal Block | myMectronic
Purchase the genuine WAGO 283-604 terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 283604?
You can click on the BUY or RFQ button to purchase 283604 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 283604?
You can download the 283604 datasheet or visit the WAGO website for support.
Who is the manufacturer of 283604?
WAGO
