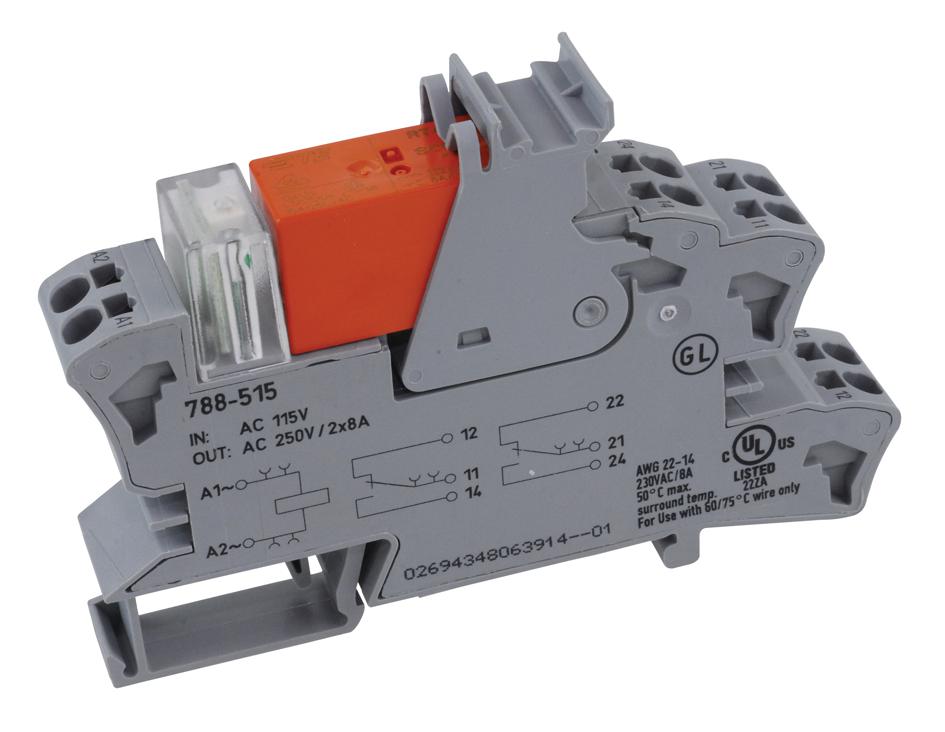

WAGO 788515 Miniature Switching Relay
The WAGO 788-515 is a compact and versatile miniature switching relay suitable for a wide range of industrial automation and control applications. Designed for DIN rail mounting, this relay offers a 24V AC input voltage and utilizes AgNi 90/10 contacts for reliable switching performance. It is characterized by its safe isolation according to DIN EN 50178, ensuring electrical safety in various environments. The relay's robust design and compact size make it ideal for space-constrained applications while providing dependable switching capabilities for resistive and inductive loads. Proper protective circuitry is recommended for inductive loads to protect the relay coils and contacts.
WAGO 788515 Miniature Switching Relay Specifications:
- Nominal Input Voltage: 24 V AC
- Contact Material: AgNi 90/10
- Max. Continuous Current: 16 A
- Max. Make Current: 4 s 30 A (AC)
- Max. Switching Voltage: 250 V AC
- Max. Switching Power (Resistive): 4 kVA AC, DC
- Recommended Minimum Load: 12 VDC / 10 mA
- Pull-in/Drop-out/Bounce Time: 8ms / 6ms / 6 ms
- Mechanical Life: 10 x 10^6 switching operations
- Nominal Voltage to EN 60664-1: 250 V / 4 kV / 3
- Dielectric Strength Contact-Coil: 5 kVrms
- Dielectric Strength Open Contact: 1 kVrms
- Dielectric Strength Contact-Contact: 2.5 kVrms
- Ambient Operating Temperature: -25 °C ... +50 °C
- Storage Temperature: -40 °C ... +70 °C
- Dimensions (mm): 15 x 54 x 86
- Wire Connection: Push-in CAGE CLAMP®
- Cross Sections: 0.34 mm² … 2.5 mm² / AWG 22 … 12
- Strip Length: 9 … 10 mm / 0.35 … 0.39 in
- Standards/Specifications: EN 61140; EN 50178; UL 508
