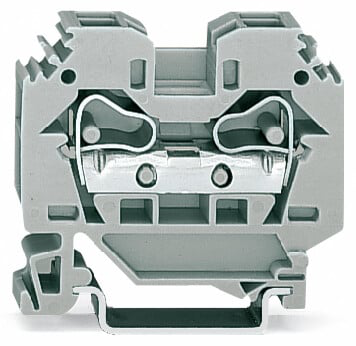

WAGO 284101 2-Conductor Terminal Block
The WAGO 284-101 is a robust and reliable 2-conductor through terminal block ideal for use in industrial control panels and electrical distribution systems. Its CAGE CLAMP® connection ensures a secure and gas-tight connection, minimizing the risk of loose connections and ensuring long-term reliability. The terminal block is designed for DIN-rail mounting (35 x 15 and 35 x 7.5), making it easy to integrate into existing systems. With a 10 mm² wire capacity and a gray color, the 284-101 provides a versatile and durable solution for a wide range of electrical applications.
WAGO 284101 2-Conductor Terminal Block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 57 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Strip length: 12 … 13 mm / 0.47 … 0.51 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Side-entry wiring
- Width: 10 mm / 0.394 inch
- Height from upper-edge of DIN-35 rail: 41.5 mm / 1.634 inch
- Depth: 52 mm / 2.047 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Side marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.29 MJ
- Weight: 18.1 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918323383
- Customs Tariff No.: 85369010000
